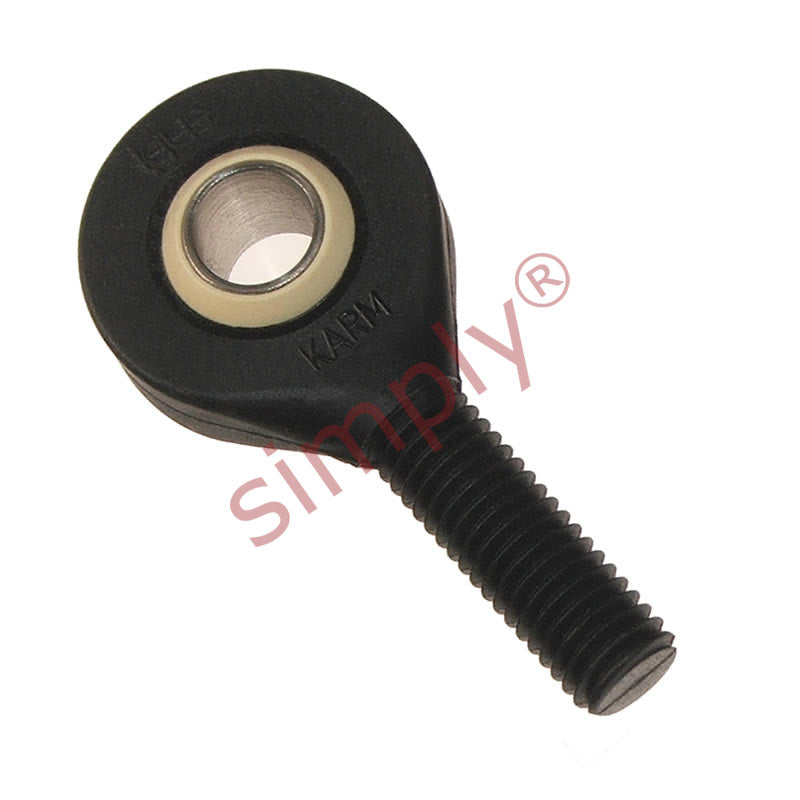

igubal KALM14MH Left Hand Male Plastic Rod End 14mm Bore M14 Thread with Metal Insert - Allow 2-3 Days
igubal KALM14MH Left Hand Male Plastic Rod End 14mm Bore M14 Thread with Metal Insert - Allow 2-3 Days
Regular price
$30.80
ex VAT
Regular price
Sale price
$30.80
ex VAT
In stock
Price Break
4+
$14.60
9+
$13.78
19+
$13.62
29+
$13.46
39+
$13.29
49+
$13.13
59+
$12.31
69+
$12.14
79+
$11.98
89+
$11.81
99+
$11.49
Quantity
Couldn't load pickup availability
Share this product
Description
Description
KALM_MH_DESC
- Brand / Quality:
- Igus - High Quality
- Thread Size:
- M14
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 14mm
Technical
Technical
| d1 | 14mm |
|---|---|
| d2 | 38mm |
| d3 | M14 |
| C1 | 13.5mm |
| B | 19mm |
| h | 61mm |
| l1 | 36mm |
| l2 | 79mm |
| Max pivot angle | 25° |
| Max static tensile strength (short term) | 3400 N |
| Max static tensile strength (long term) | 1700 N |
| Max radial load (short term) | 700 N |
| Max radial load (long term) | 350 N |
| Min thread depth | 25mm |
| Max torque strength outside thread | 12 Nm |
| Max torque through ball (standard) | 35 Nm |
| Max torque through ball (MH) | 75 Nm |
| Weight | 25 g |
