SKU: KALM-12

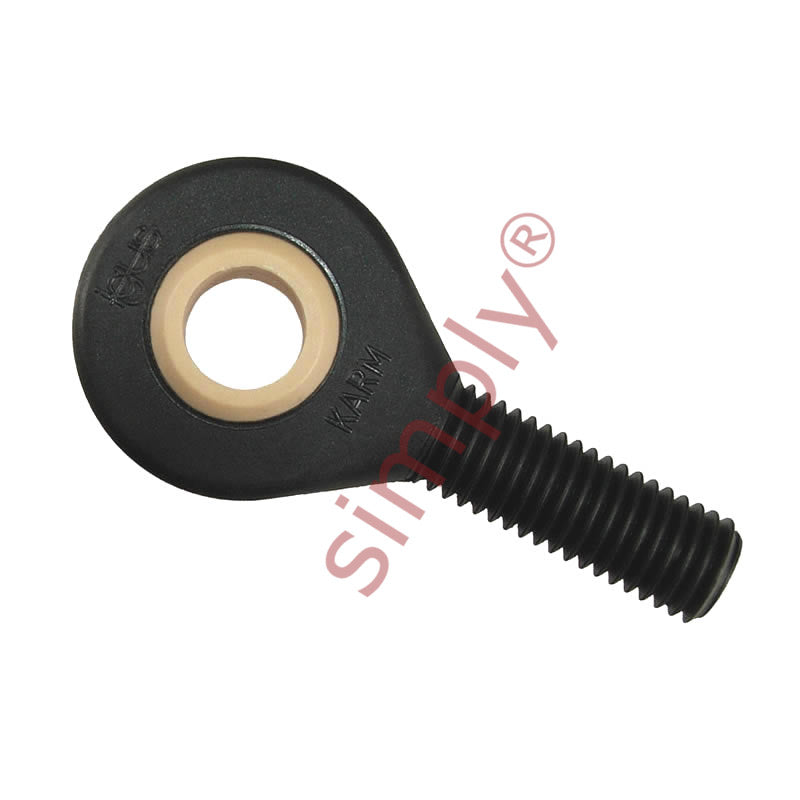

igubal KALM12 Left Hand Male Plastic Rod End 12mm Bore M12 Thread
igubal KALM12 Left Hand Male Plastic Rod End 12mm Bore M12 Thread
Regular price
$16.16
ex VAT
Regular price
Sale price
$16.16
ex VAT
In stock
Price Break
4+
$7.67
9+
$7.24
19+
$7.15
29+
$7.06
39+
$6.98
49+
$6.89
59+
$6.46
69+
$6.37
79+
$6.29
89+
$6.20
99+
$6.03
Quantity
Couldn't load pickup availability
Share this product
Description
Description
KALM_DESC
- Brand / Quality:
- Igus - High Quality
- Thread Size:
- M12
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 12mm
Technical
Technical
| d1 | 12mm |
|---|---|
| d2 | 34mm |
| d3 | M12 |
| C1 | 12mm |
| B | 16mm |
| h | 54mm |
| l1 | 32mm |
| l2 | 71mm |
| Max pivot angle | 25° |
| Max static tensile strength (short term) | 2700 N |
| Max static tensile strength (long term) | 1350 N |
| Max radial load (short term) | 400 N |
| Max radial load (long term) | 200 N |
| Min thread depth | 22mm |
| Max torque strength outside thread | 6 Nm |
| Max torque through ball (standard) | 30 Nm |
| Max torque through ball (MH) | 70 Nm |
| Weight | 18 g |
