• NTN K16X22X20 Needle Roller and Cage Assembly 16x22x20mm
1 1

SKU: K16X22X20-NTN

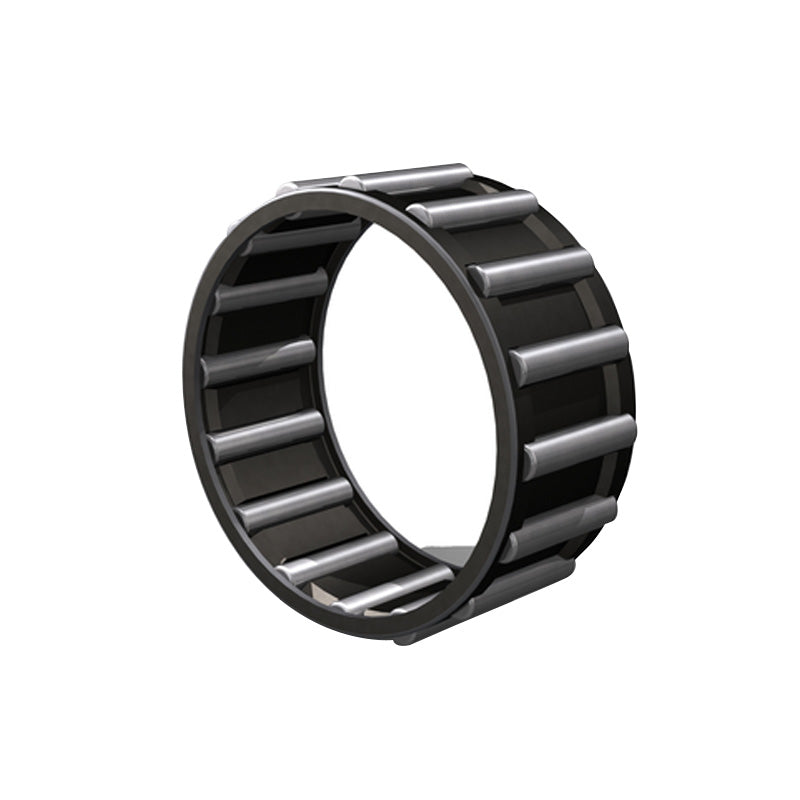

NTN K16X22X20 Needle Roller and Cage Assembly 16x22x20mm

NTN K16X22X20 Needle Roller and Cage Assembly 16x22x20mm
$13.78 ex VAT
$13.78 ex VAT
Sale Sold out

In stock

Price Break
3+ $6.53
4+ $6.17
9+ $6.09
19+ $6.02
49+ $5.95
99+ $5.87
499+ $5.51
999+ $5.43
1999+ $5.36
2999+ $5.28
4999+ $5.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JFD93YB3TZ
Brand / Quality:
NTN - High Quality
Inside Diameter:
16mm
Outside Diameter:
22mm
Width:
20mm
Technical
Fw - Inside diameter 16mm
Ew - Outside diameter 22mm
Bc - Cage width 20mm
Cr - Dynamic load rating 16 kN
C0r - Static load rating 18.8 kN
N - Grease lubrication limit speed 15000 tr/min
N - Oil lubrication limit speed 23000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
