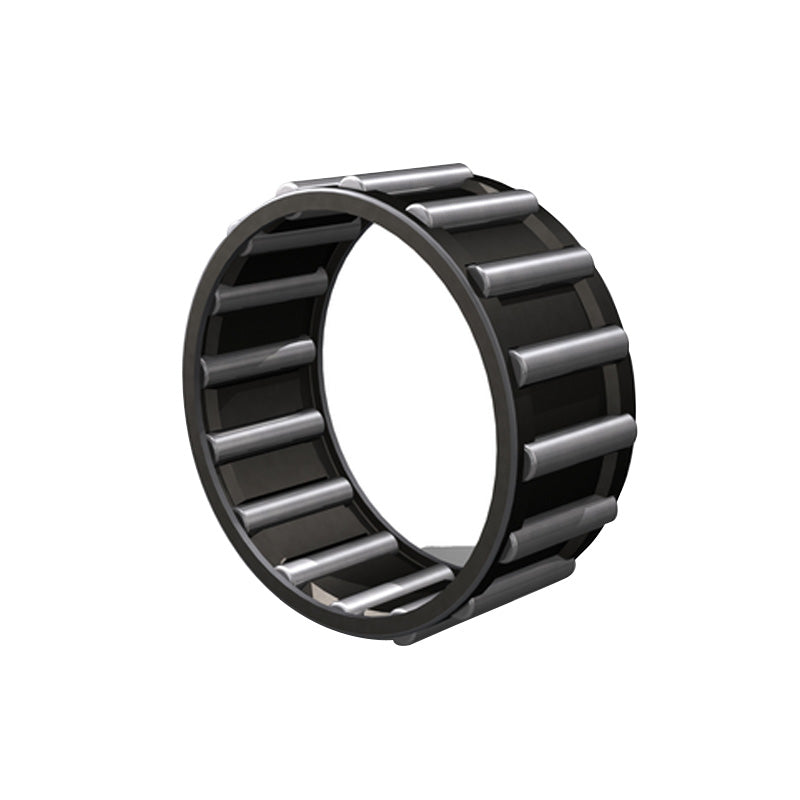

• NTN K12X15X13V1 Needle Roller and Cage Assembly 12x15x13mm
1 1

SKU: K12X15X13V1-NTN

NTN K12X15X13V1 Needle Roller and Cage Assembly 12x15x13mm

NTN K12X15X13V1 Needle Roller and Cage Assembly 12x15x13mm
$9.25 ex VAT
$9.25 ex VAT
Sale Sold out

In stock

Price Break
3+ $4.39
4+ $4.14
9+ $4.09
19+ $4.04
49+ $3.99
99+ $3.94
499+ $3.70
999+ $3.65
1999+ $3.60
2999+ $3.55
4999+ $3.45

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JFD93YB3TZ
Brand / Quality:
NTN - High Quality
Inside Diameter:
12mm
Outside Diameter:
15mm
Width:
13mm
Technical
Fw - Inside diameter 12mm
Ew - Outside diameter 15mm
Bc - Cage width 13mm
Cr - Dynamic load rating 6 kN
C0r - Static load rating 7.7 kN
N - Grease lubrication limit speed 17000 tr/min
N - Oil lubrication limit speed 26000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
