SKU: JSB060CP0

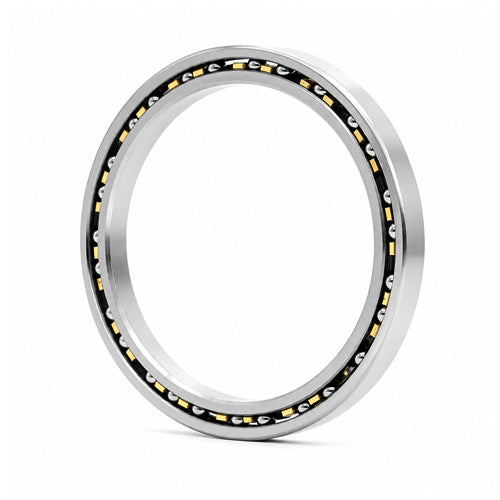

Silverthin JSB060CP0 Thin Section Sealed Radial Contact Ball Bearing 6x6.625x0.312 inch - Allow 7-10 Days
Silverthin JSB060CP0 Thin Section Sealed Radial Contact Ball Bearing 6x6.625x0.312 inch - Allow 7-10 Days
Equivalent to: JB060CP0
Out of stock
Description
Description
|
Silverthin Thin Section Radial Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with deep ball grooves to withstand high loads. Although these bearings are used primarily in applications with radial loads, it can withstand moderate axial loads, reversing axial loads and moment loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal for applications with radial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 152.4mm = 6 inch
- Outside Diameter:
- 168.28mm = 6-5/8 inch
- Width:
- 7.94mm = 5/16 inch
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| B | 6 inch |
|---|---|
| D | 6.625 inch |
| Width | 0.312 inch |
| L1 | 6.136 inch |
| L2 | 6.362 inch |
| Static Radial Load | 11.396 kN |
| Dynamic Radial Load | 3.995 kN |
| Torque Max No Load | 52 Oz-In |
| Weight | 0.1996 kg |
