SKU: IRT.2220-1.EU

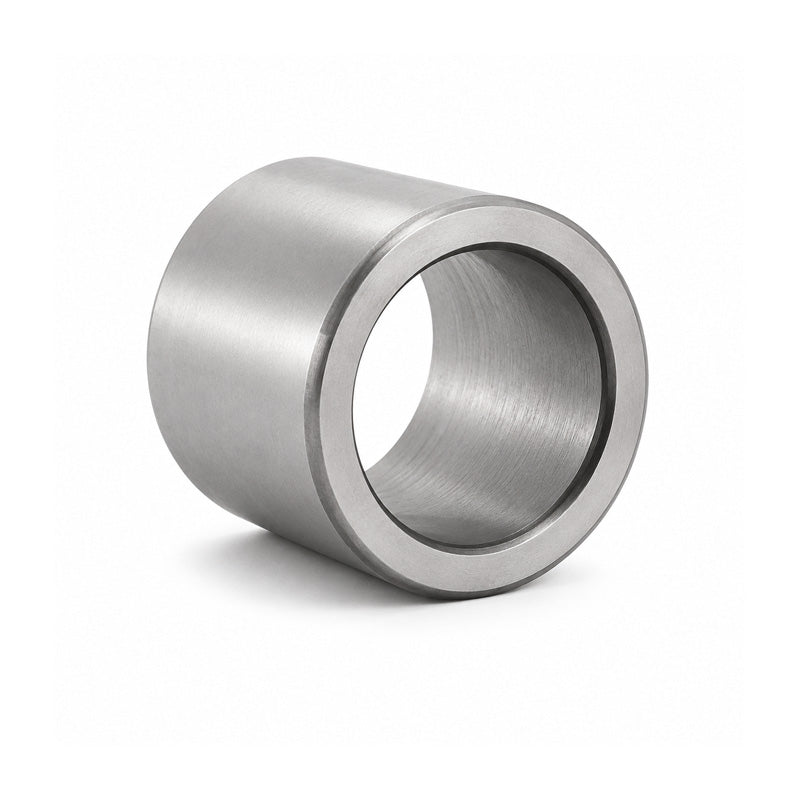

IRT2220-1 Budget Shaft Sleeve 22x28x20.5mm
IRT2220-1 Budget Shaft Sleeve 22x28x20.5mm
Equivalent to: MR22x28x20.5 IR22x28x20.5
Out of stock
Share this product
Description
Description
|
Budget Inner Rings: Made from carbon chromium steel are hardened and ground to their final dimensions. To facilitate the use with needle roller bearings a lead in either side of the sleeve is provided. Benefits: Hardened and ground, precision component, lead in for easier assembly. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 28mm
- Width:
- 20.5mm
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 28mm |
| C | 20.5mm |
| Weight | 37 g |
