SKU: HRC90B-MB

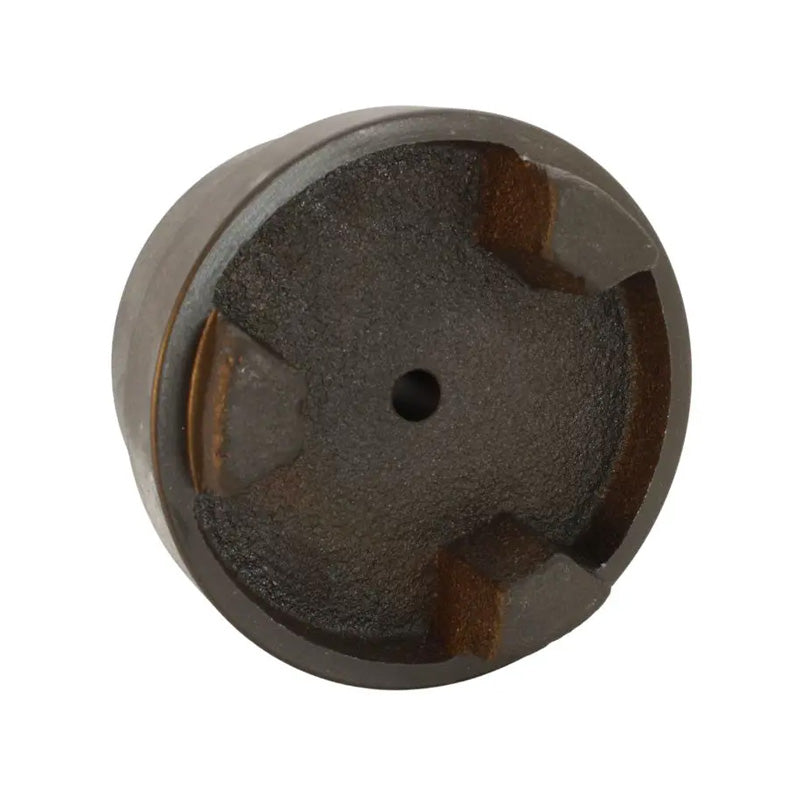

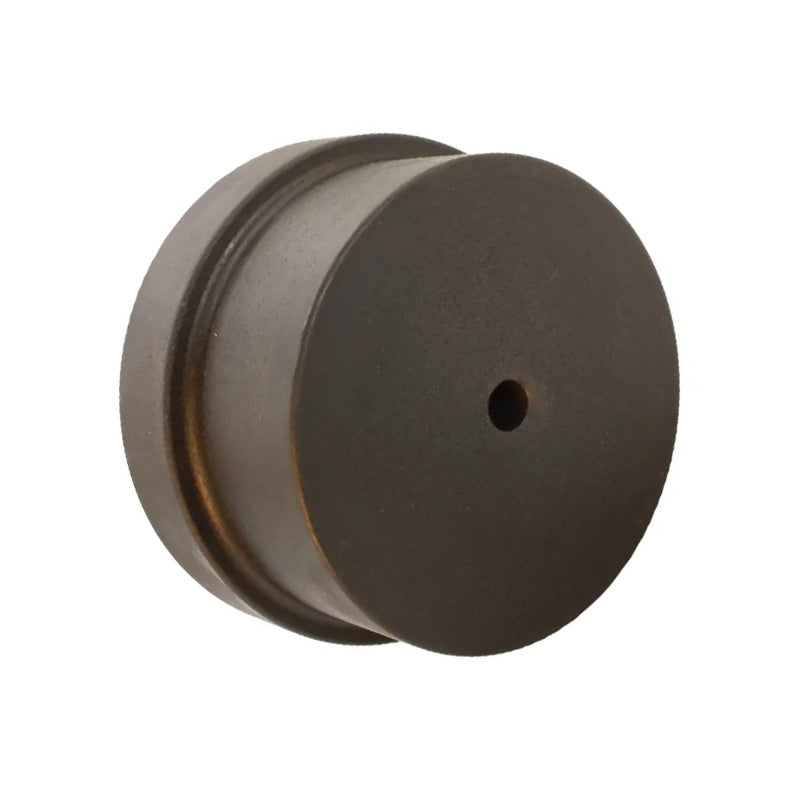

Major Branded HRC90B-MB HRC Coupling Single Flange Pilot Bored Max Bore 42mm
Equivalent to: HRC90B DRC90B
In stock
Price Break
Couldn't load pickup availability
Description
Branded HRC Coupling Single Pilot Bored: These semi-elastic couplings are designed for general use purpose use. The fully machined outside diameters allow alignment by simple straight-edge methods. The shaft connection is "fail-safe" due to the interacting dog design.
These coupling flanges have pilot bores and will require machining to your application requirements.
Please Note: The diameter of the pilot bore is approximate and can vary between brands.
This is a half coupling. You require 2 x flanges and 1 x insert to create a full coupling assembly.
Do you need a Fire Resistant Antistatic (F.R.A.S) rubber insert. See links below.
- Brand / Quality:
- Major Brand - High Quality

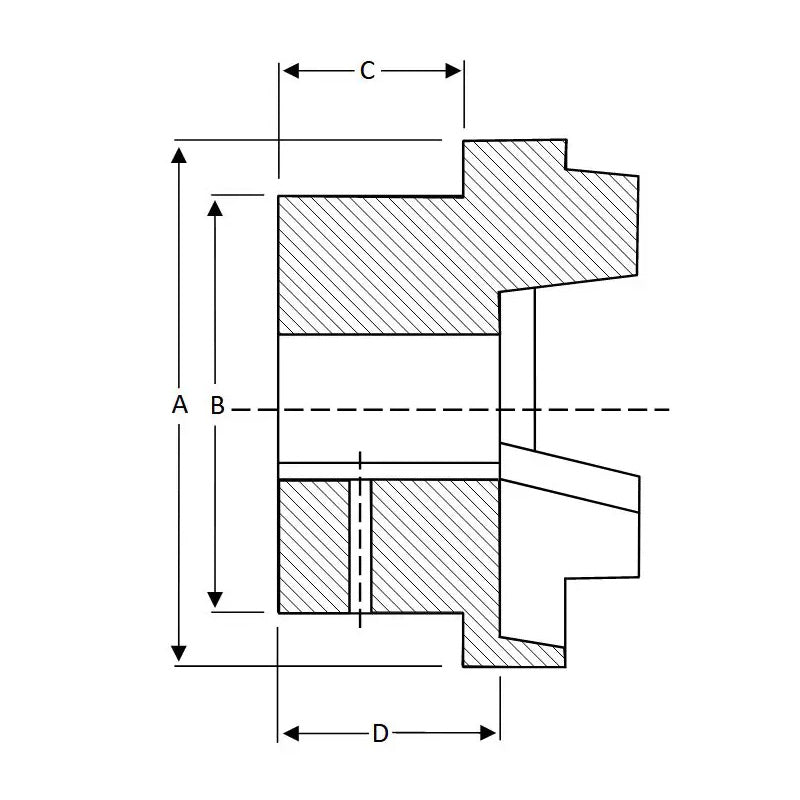

Technical
| Nominal Torque | 80 Nm |
|---|---|
| Overall Diameter A | 85mm |
| Hub Diameter B | 70mm |
| Assembled Length F | 30.5mm |
| Insert Bore Dia E | 32mm |
| Insert Width G | 22.5mm |
| Parallel Misalignment | 0.3mm |
| Weight | 1.07kg |
| L width | 82.5mm<sup>3</sup> |
| Max Bore | 42mm |
| Pilot Bore (Approx) | 10mm |
| Keyway Screw Size | M6mm |
| Shoulder Width D | 26mm |
| Hub Width C | 30.5mm |
| Max Power at 100 rpm | 0.84 kW |
| Max Power at 200 rpm | 1.68 kW |
| Max Power at 400 rpm | 3.35 kW |
| Max Power at 600 rpm | 5.03 kW |
| Max Power at 720 rpm | 6.03 kW |
| Max Power at 800 rpm | 6.7 kW |
| Max Power at 960 rpm | 8.04 kW |
| Max Power at 1200 rpm | 10.1 kW |
| Max Power at 1440 rpm | 12.1 kW |
| Max Power at 1600 rpm | 13.4 kW |
| Max Power at 1800 rpm | 15.1 kW |
| Max Power at 2000 rpm | 16.8 kW |
| Max Power at 2200 rpm | 18.4 kW |
| Max Power at 2400 rpm | 20.1 kW |
| Max Power at 2600 rpm | 21.8 kW |
| Max Power at 2880 rpm | 24.1 kW |
| Max Power at 3000 rpm | 25.1 kW |
| Max Power at 3600 rpm | 30.1 kW |
| Nominal Torque (Nm) | 80 Nm |
| Max Torque | 180 Nm |
