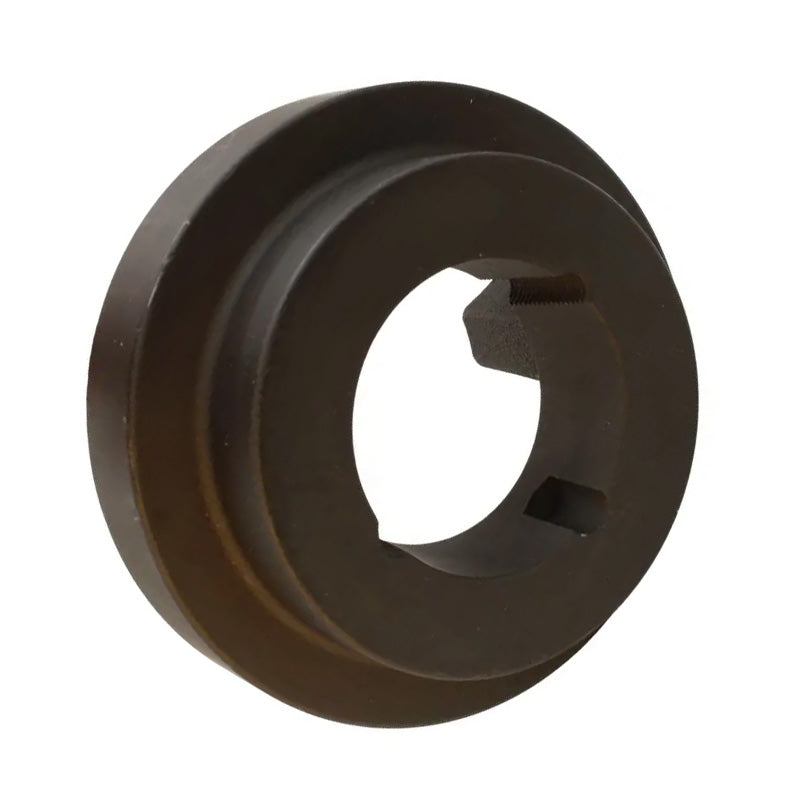

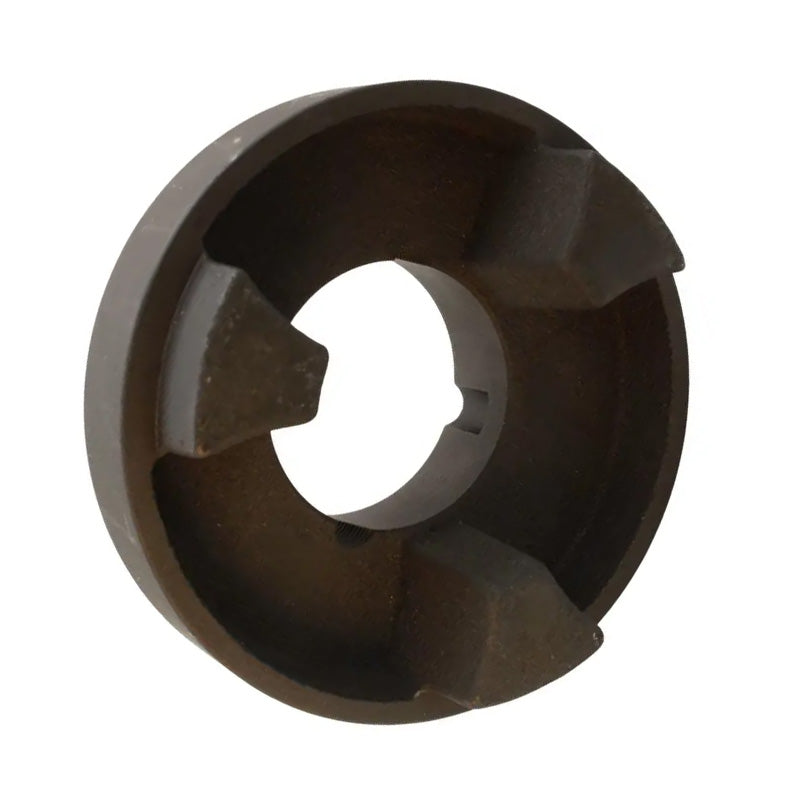

Major Branded HRC70H-MB HRC Coupling Single Flange Outer Facing Taper Bore Max Bush Bore 25mm / 1 inch

Branded HRC Coupling Single Outer Facing Taper Bore: These semi-elastic couplings are designed for general use purpose use and they permit quick and easy assembly by means for a tapered locking bush fixing. The fully machined outside diameters allow alignment by simple straight edge methods. The shaft connection is "fail-safe" due to interacting dog design.

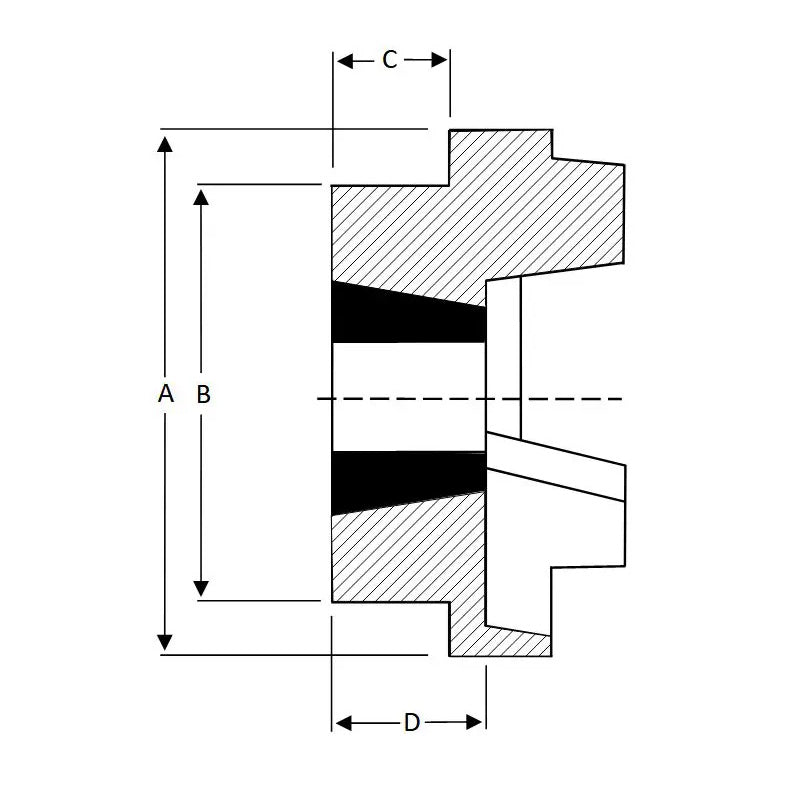

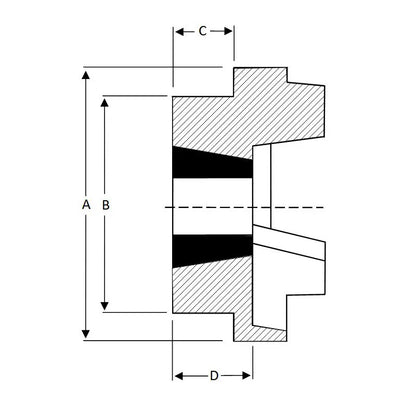

These coupling flanges have taper bores to accept tapered locking bushes, these will need to be purchased separately and are available with a wide range of standard bores to suit your application. The taper bores are outer facing where the larger diameter of the taper is on the opposite side of the coupling to the rubber drive element.

This is a half coupling. You require 2 x flanges and 1 x insert to create a full coupling assembly.

Do you need a Fire Resistant Antistatic (F.R.A.S) rubber insert. See links below.

Brand / Quality:

Major Brand - High Quality

Max Bore:

25mm or 1 inch
