SKU: HOI-062

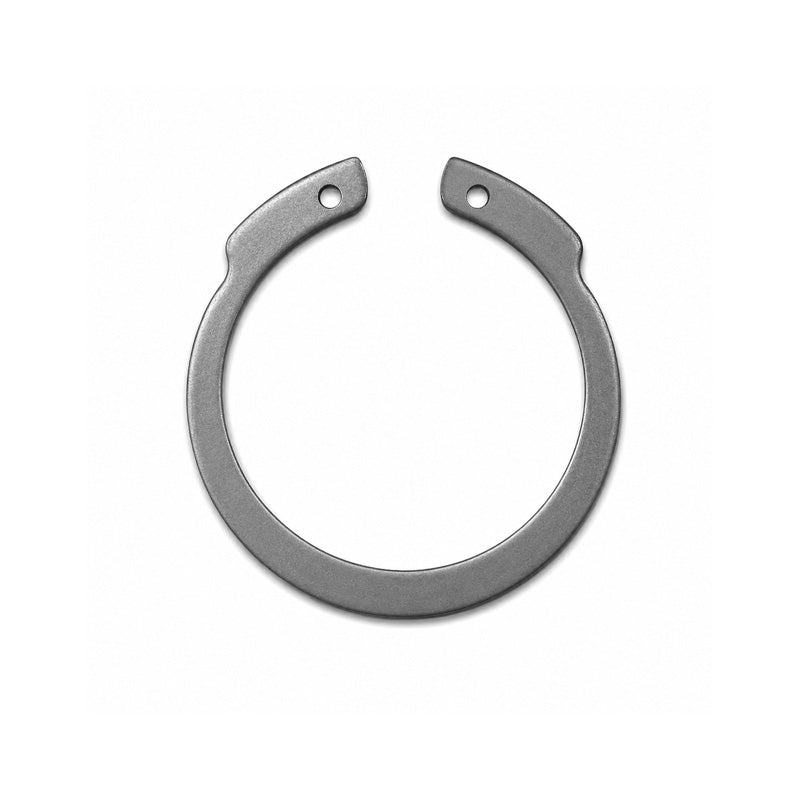

Inverted Internal Circlip 5/8 inch Diameter
Inverted Internal Circlip 5/8 inch Diameter
Equivalent to: HOI-062
Out of stock
Description
Description
Inverted Internal Circlips: These circlips are axially assembled and suitable for bores with grooves.
This circlip has a large free diameter and gap width, consequently, it fits more tightly into the groove and provides higher and more uniform thrust load capacity. The lugs on these circlips are "reversed" and have a reduced distance between the lugs.
Benefits: Cost effective replacement, durable, removable.
- Brand / Quality:
- Simply Circlips - Economy Quality
Technical
Technical
| --- | Housing Diameter |
|---|---|
| Dh - Imperial | 0.625 inch = 5/8 inch |
| Dh - Metric | 15.9mm |
| --- | Groove Size |
| Dg - Diameter | 0.665 inch |
| Diameter Tolerance | +.002 to -.004* |
| W - Width | 0.029 inch |
| Width Tolerance | +.003 to -.000 |
| d - Depth | 0.02 inch |
| --- | Circlip Size and Weight |
| Df - Free Diameter | 0.675 inch |
| Free Diameter Tolerance | +.010 to -.005 |
| T - Thickness | 0.025 inch |
| Thickness Tolerance | 0.002 |
| Weight (1000pcs) lbs | 0.7 lbs |
| --- | Clearance Diameter |
| L1 - Compressed in Housing | 0.47 inch |
| L2 - Released in Groove | 0.51 inch |
| --- | Thrust Loads (Square Corner Abutment) |
| Pr - Ring Safety Factor of 4 | 1015 lbs |
| Pg - Groove Safety Factor of 2 | 450 lbs |
| --- | Maximum Section (Including Lug) |
| S max - Maximum Section | 0.072 inch |
| Maximum Section Tolerance | 0.004 |
| --- | Minimum Section |
| S max - Minimum Section | 0.036 inch |
| Minimum Section Tolerance | 0.004 |
| --- | Hole Diameter |
| R - Hole Diameter | 0.03 inch |
| Hole Diameter Tolerance | +.010 to -.002 |
| --- | Gap Width (Ring in Groove) |
| G min - Gap Width | 0.15 inch |
| --- | Allowable Corner (Radius and Chamfers) |
| R max - Allowable Corner for Radius | 0.042 inch |
| Ch max - Allowable Corner for Chamfers | 0.028 |
| --- | Maximum Load (with R max or Ch max) |
| P"r - Maximum Load | 400 |
| --- | Edge Margin |
| Y - Edge Margin | 0.06 inch |
