SKU: HN2016-EU

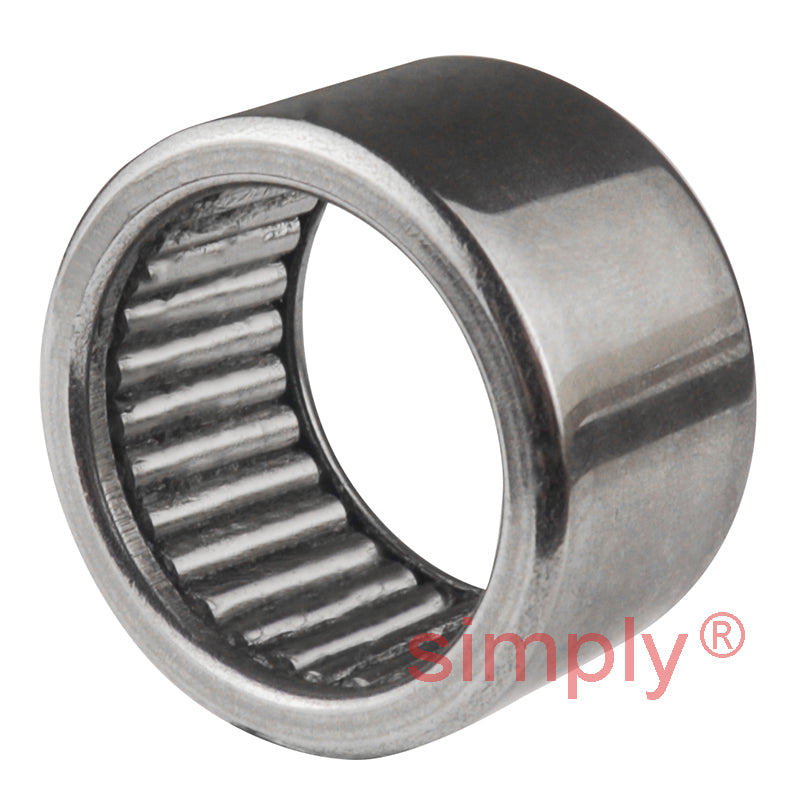

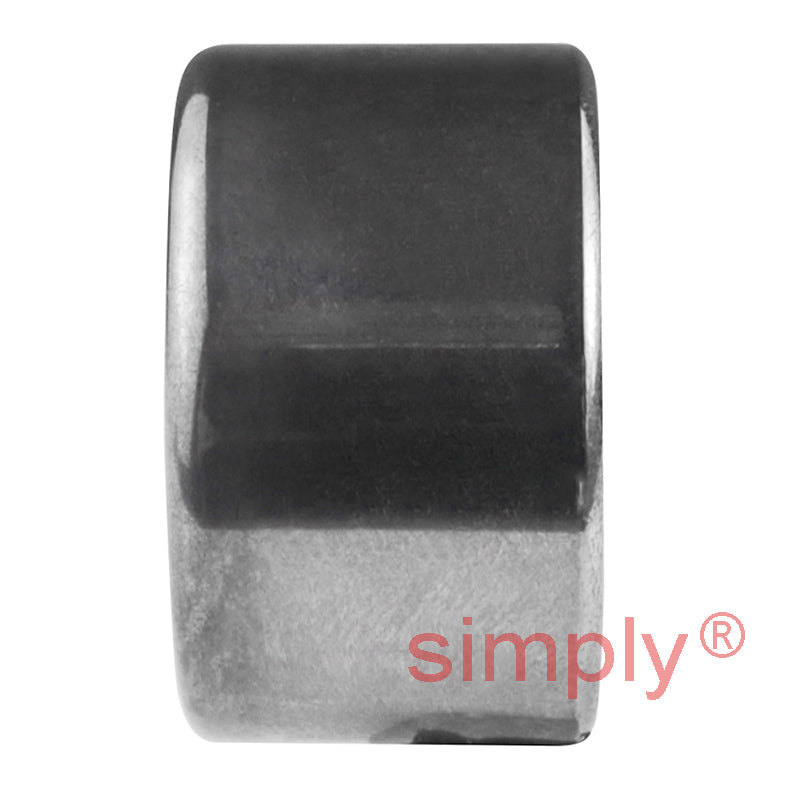

Budget HN2016 Open Ended Drawn Cup Type Full Complement Needle Roller Bearing 20x26x16mm
Budget HN2016 Open Ended Drawn Cup Type Full Complement Needle Roller Bearing 20x26x16mm
Regular price
$18.09
ex VAT
Regular price
Sale price
$18.09
ex VAT
Equivalent to: HJ2016 HK2016V DL2016
In stock
Price Break
10+
$8.58
19+
$8.09
29+
$8.00
39+
$7.90
49+
$7.80
74+
$7.71
99+
$7.23
199+
$7.13
249+
$7.03
499+
$6.94
999+
$6.74
Quantity
Couldn't load pickup availability
Description
Description
Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 26mm
- Width:
- 16mm
Technical
Technical
| Bore | 20mm |
|---|---|
| Outside diameter | 26mm |
| Width | 16mm |
| Radius r min | 0.8mm |
| Dynamic Load (kN) | 15.2 |
| Static Load (kN) | 29.2 |
| Speed rpm | 5850 |
| Weight | 0.022 kg |
