SKU: HMV69E-SKF
SKF HMV69E Metric Hydraulic Nut Tr345x5 Thread
SKF HMV69E Metric Hydraulic Nut Tr345x5 Thread
Regular price
$6,830.48
ex VAT
Regular price
Sale price
$6,830.48
ex VAT
In stock
Price Break
10+
$3,239.02
19+
$3,057.05
29+
$3,020.66
39+
$2,984.26
49+
$2,947.87
74+
$2,911.48
99+
$2,729.51
199+
$2,693.11
249+
$2,656.72
499+
$2,620.33
999+
$2,547.54
Quantity
Couldn't load pickup availability
Description
Description
|
SKF HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using an SKF Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of an SKF Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- SKF - High Quality
Technical
Technical

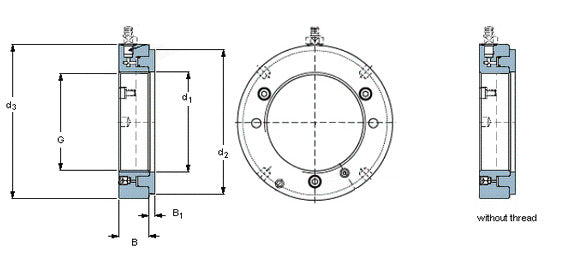

| G Thread | Tr345x5 |
|---|---|
| d1 | 347 |
| d2 | 436mm |
| d3 | 456mm |
| B | 54mm |
| B1 | 10mm |
| Permitted piston displacement | 14mm |
| Piston area | 29400mm2 |
