SKU: HMV-10-EBF-HN-SNR

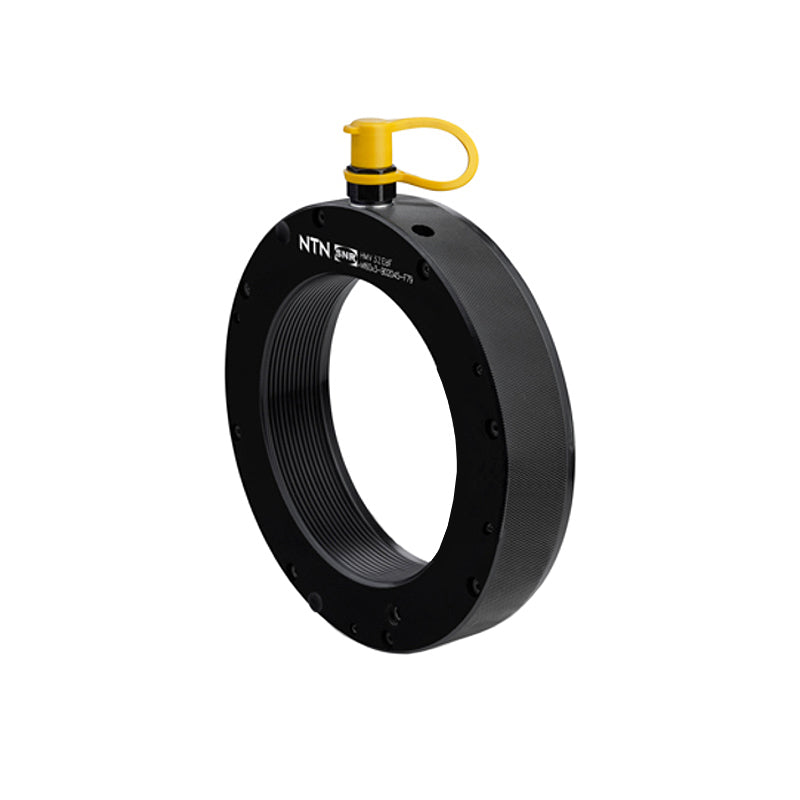

SNR HMV10 Metric Hydraulic Nut with M50x1.5 Thread - Allow 2-3 Days

SNR HMV10 Metric Hydraulic Nut with M50x1.5 Thread - Allow 2-3 Days

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

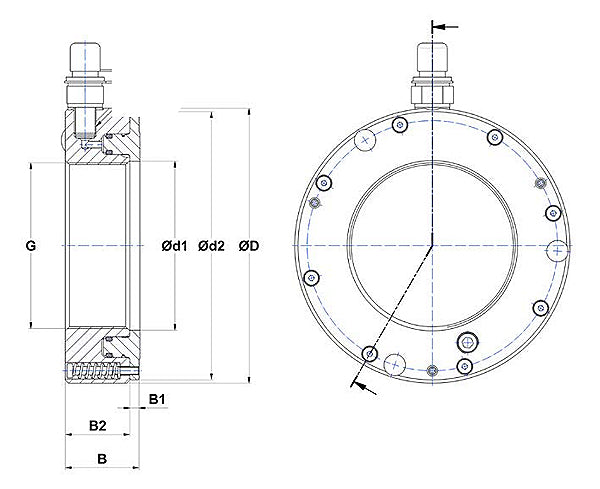

HMV HMV10
Thread G M50x1.5
Outside Diameter D 114mm
Total Width B 43mm
Piston Diameter max. d2 110mm
Permitted Piston Stroke 5mm
Flange Width B1 5mm
Body Width B2 38mm
Diameter d1 50.5mm
Piston Surface Area 2850mm2
Weight 2.9kg
