SKU: HK2812-EU

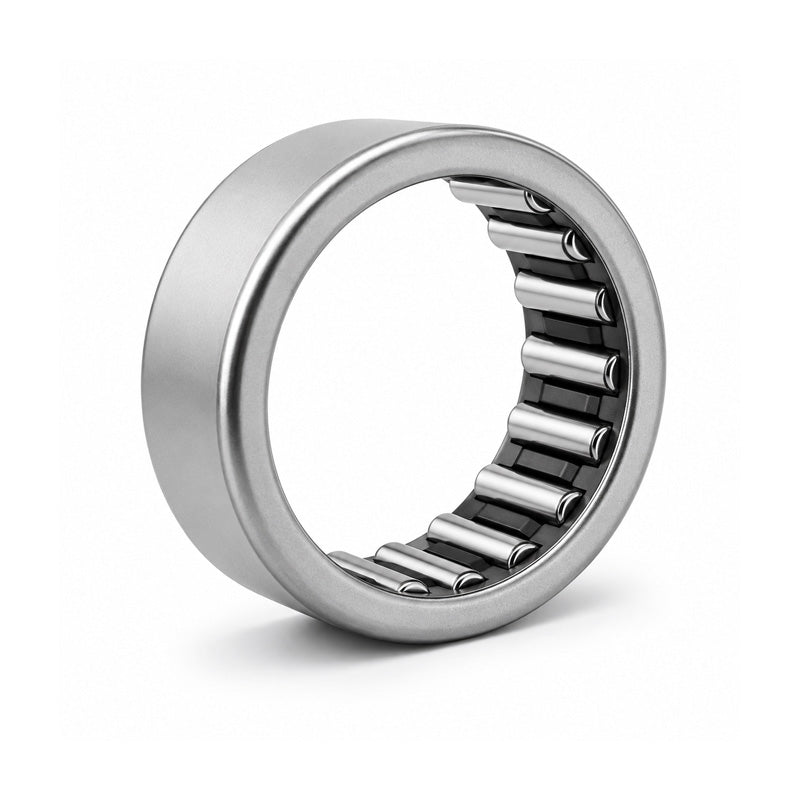

HK2812 Budget Drawn Cup Type Needle Roller Bearing Open End Type 28x35x12mm
HK2812 Budget Drawn Cup Type Needle Roller Bearing Open End Type 28x35x12mm
Regular price
$7.41
ex VAT
Regular price
Sale price
$7.41
ex VAT
In stock
Price Break
10+
$3.51
19+
$3.32
29+
$3.28
39+
$3.24
49+
$3.20
74+
$3.16
99+
$2.96
199+
$2.92
249+
$2.88
499+
$2.84
999+
$2.76
Quantity
Couldn't load pickup availability
Description
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28mm
- Outside Diameter:
- 35mm
- Width:
- 12mm
Technical
Technical

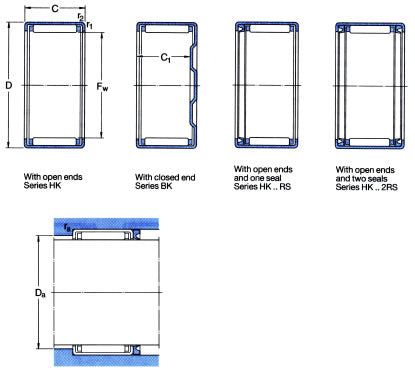

| Fw | 28mm |
|---|---|
| D | 35mm |
| C | 12mm |
