SKU: HK2516LL/3AS-NTN
NTN HK2516LL/3AS Drawn Cup Needle Roller Bearing with Open End 25x32x16mm
NTN HK2516LL/3AS Drawn Cup Needle Roller Bearing with Open End 25x32x16mm
Regular price
$13.40
ex VAT
Regular price
Sale price
$13.40
ex VAT
In stock
Price Break
3+
$6.35
4+
$6.00
9+
$5.93
19+
$5.85
49+
$5.78
99+
$5.71
499+
$5.36
999+
$5.28
1999+
$5.21
2999+
$5.14
4999+
$5.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 32mm
- Width:
- 16mm
Technical
Technical

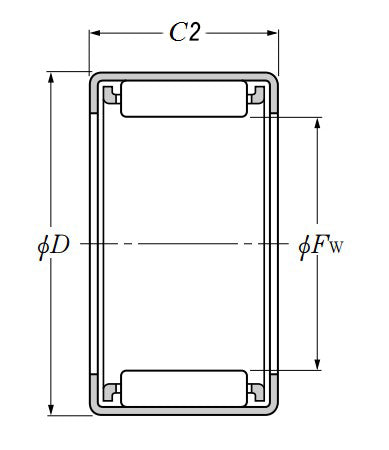

| Fw - Inside diameter | 25mm |
|---|---|
| D - Outside diameter | 32mm |
| C2 - Width of drawn cup LL | 16mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR20X25X18D |
| Cr - Dynamic load rating | 11.8 kN |
| C0r - Static load rating | 16.3 kN |
| N - Grease lubrication limit speed | 6500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
