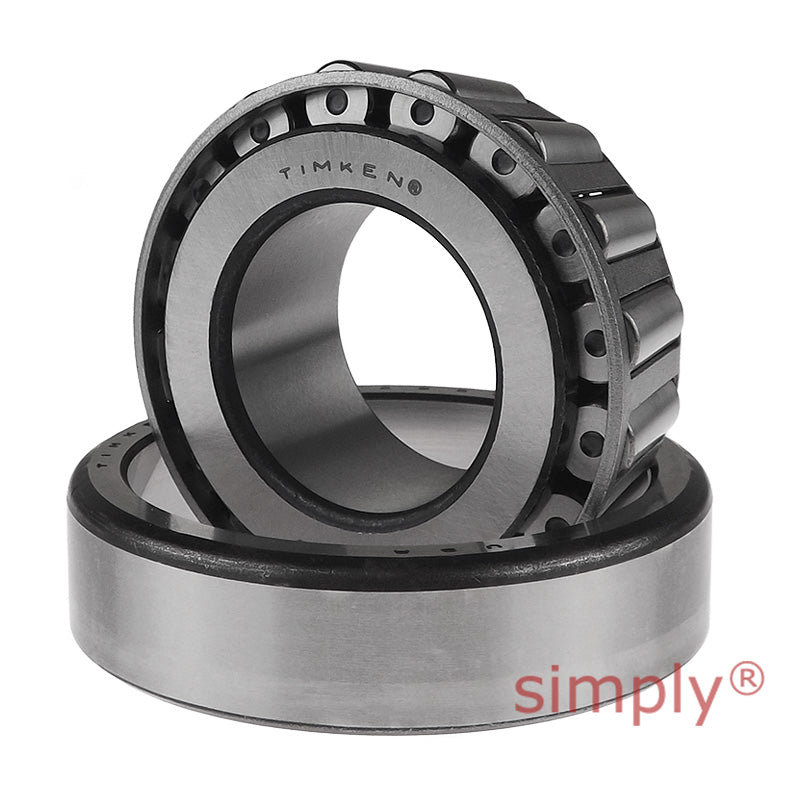

Timken HH249949/HH249910 TS Single-Row Taper Roller Bearing 9.75x16x4.5625 inch
Timken HH249949/HH249910 TS Single-Row Taper Roller Bearing 9.75x16x4.5625 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 247.65mm = 9.75 (9-3/4) inch
- Outside Diameter:
- 406.4mm = 16 inch
- Width:
- 115.89mm = 4.563 (4-9/16) inch
Technical
Technical
| d | 247.65mm = 9.75 inch |
|---|---|
| D | 406.4mm = 16 inch |
| T | 115.888mm = 4.5625 inch |
| Dynamic (1) C1 | 1930000N |
| Factors (5) e | 0.33 |
| Factors (5) Y | 1.8 |
| Dynamic (2) C90 | 499000N |
| Dynamic (2) Ca90 | 284000N |
| Factors (5) K | 1.76 |
| Static C0 | 3770000N |
| Bearing B | 117.475mm = 4.625 inch |
| Bearing C | 93.662mm = 3.6875 inch |
| Bearing a(3) | -28.7mm = -1.13 inch |
| Shaft max shaft fillet radius R(4) | 6.4mm = 0.25 inch |
| Shaft backing shoulder diameter da | 275mm = 10.83 inch |
| Shaft backing shoulder diameter db | 284mm = 11.18 inch |
| Housing backing shoulder diameter r(4) | 6.4mm = 0.25 inch |
| Housing backing shoulder diameter Da | 383mm = 15.08 inch |
| Housing backing shoulder diameter Db | 366mm = 14.41 inch |
| Cage Aa | 9mm = 0.35 inch |
| Cage Ab | 4.1mm = 0.16 inch |
| G1 | 2370 |
| G2 | 173 |
| Cg | 0.1746 |
