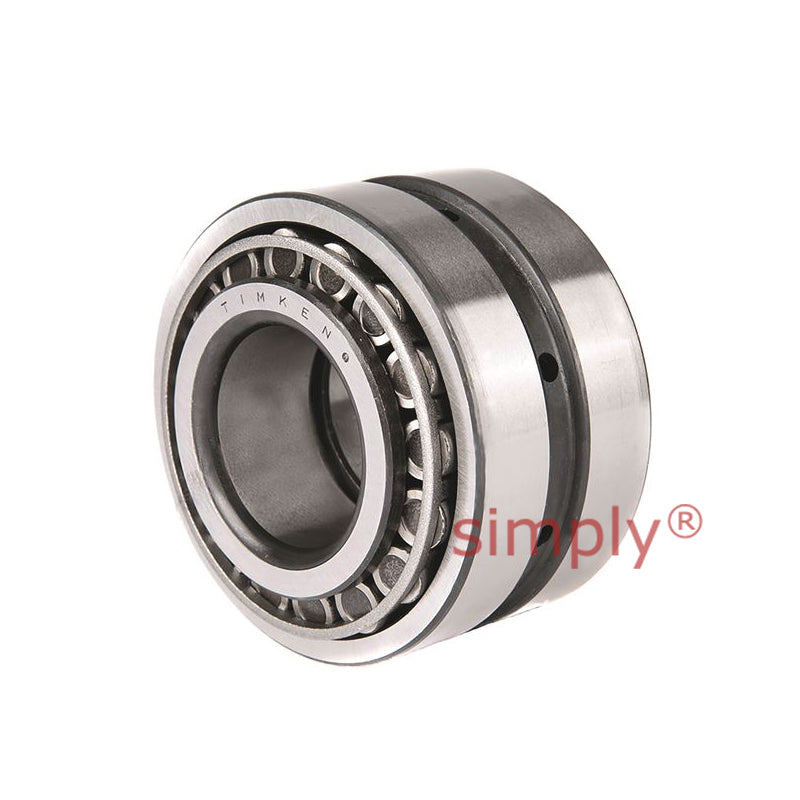

Timken HH224349/HH224310CD/HH224349XA TDO Double Outer Race Taper Roller Bearing 4.5266x8.375x5.625x4.625 inch
Timken HH224349/HH224310CD/HH224349XA TDO Double Outer Race Taper Roller Bearing 4.5266x8.375x5.625x4.625 inch
Out of stock
Description
Description

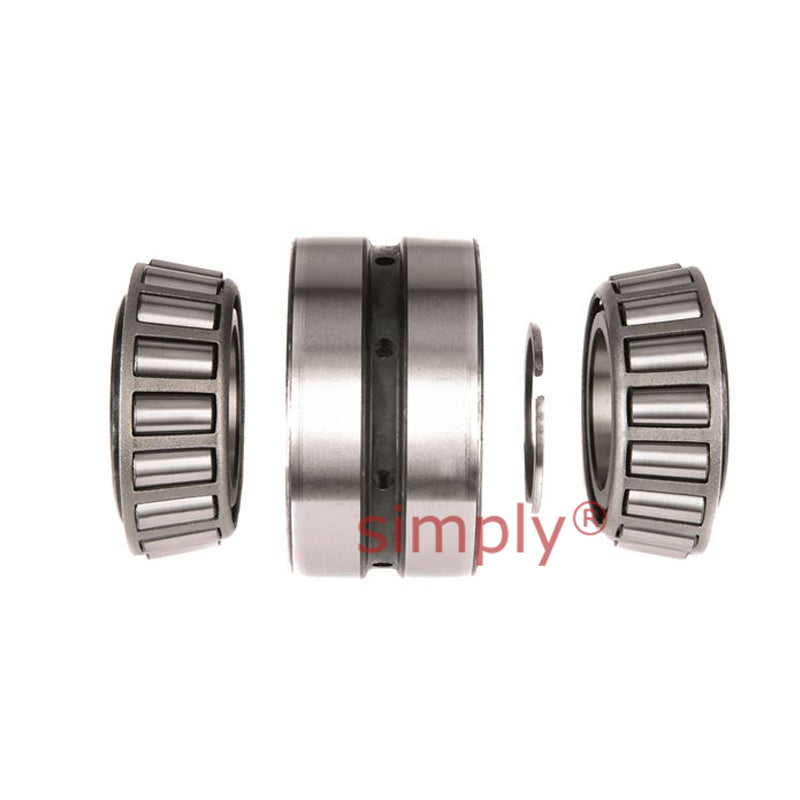

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 114.98mm = 4.5266 inch
- Outside Diameter:
- 212.73mm = 8.375 inch
- Width:
- 142.88mm = 5.625 inch
Technical
Technical
| d | 114.975mm = 4.5266 inch |
|---|---|
| D | 212.725mm = 8.375 inch |
| T | 142.875mm = 5.625 inch |
| C | 117.475mm = 4.625 inch |
| Dynamic (1) C1 | 1100000N |
| Factors (5) e | 0.33 |
| Factors (5) Y1 | 2.07 |
| Factors (5) Y2 | 3.09 |
| Dynamic (2) C90 | 163000N |
| Dynamic (2) Ca90 | 91000N |
| Dynamic (2) C90(2) | 284000N |
| Factors (5) K | 1.79 |
| Shaft max shaft fillet radius R(3) | 7mm = 0.28 inch |
| Shaft backing shoulder diameter db | 144mm = 5.67 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 201.5mm = 7.94 inch |
| Pin Ka | 25.4mm = 1 inch |
| Pin Kb | 7.9mm = 0.31 inch |
| G1 | 367 |
| G2 | 47.8 |
| Cg | 0.1182 |
