SKU: HGJ70-JCS

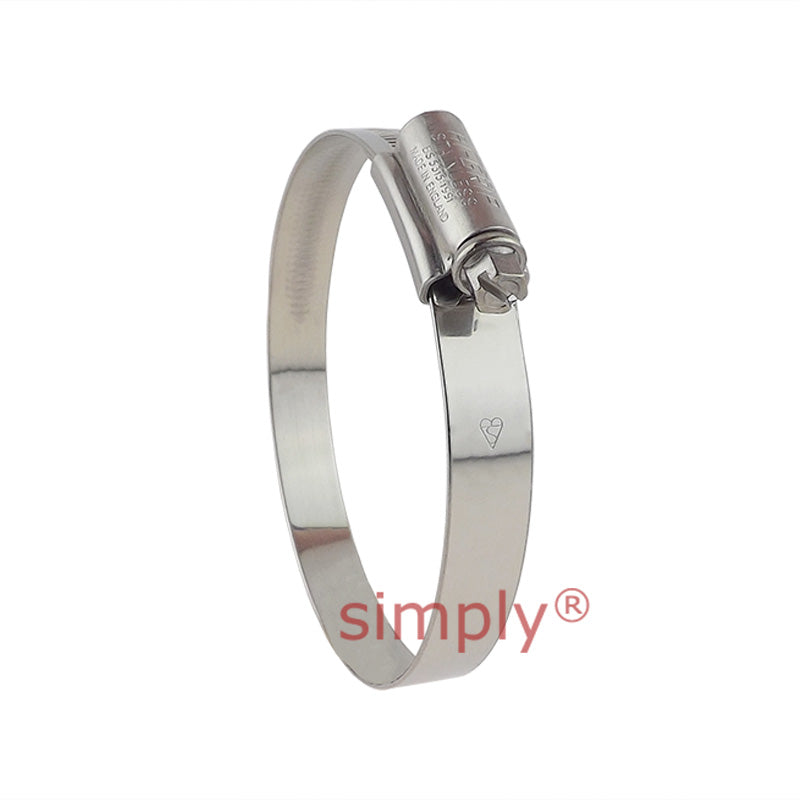

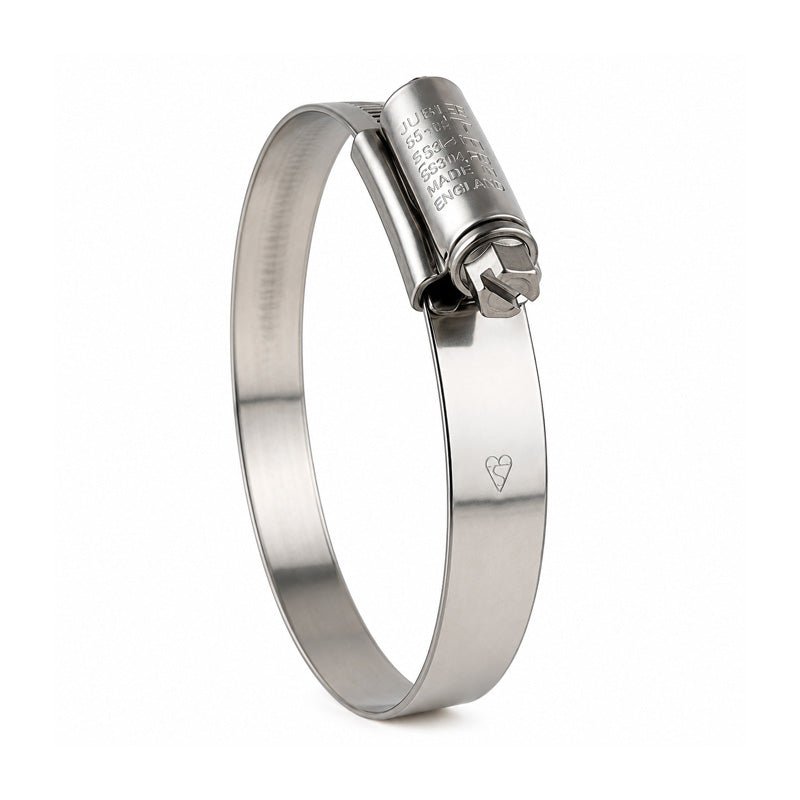

JCS HGJ70 316 Stainless Steel Hi-Grip Hose Clip Adjustment Range 50-70mm Band Width 13mm
- Regular price
- $18.98 ex VAT
- Sale price
- $18.98
- Regular price
-
In stock
Quantity Price Breaks
3
$16.89
5
$15.94
9
$15.75
19
$15.56
49
$15.37
74
$15.18
99
$14.24
199
$14.05
249
$13.86
499
$13.67
999
$13.29
SKU:
HGJ70-JCS
JCS HGJ70 316 Stainless Steel Hi-Grip Hose Clip Adjustment Range 50-70mm Band Width 13mm
- Regular price
- $18.98 ex VAT
- Sale price
- $18.98
- Regular price
-
Description
316 Stainless Steel Hi-Grip Worm Drive Hose Clips: Principally aimed at the marine, food, petrochemical and pharmaceutical industries, the Hi-Grip 316 hose clip is made entirely from BS316 EN 1.4401/1.4578 austenitic stainless steel, providing the same superior performance as the rest of the Hi-Grip range but with maximum corrosion resistance. Lloyd’s Register Type Approved for marine, offshore and industrial use. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse. They are manufactured to exceed BS5315, which has the highest requirements of any of the international standards and tests sealing ability, clamping force and torque.
Technical
| BS No. | = | 70 |
| Adjustment Range (mm) | = | 50-70mm |
| Adjustment Range (inch) | = | 2 - 2-3/4 inch |
| A | = | 13mm |
| B | = | 20mm |
| C | = | 12mm |
| D | = | 16mm |
| E | = | 13mm |
| F | = | 0.9mm |
| Screw | = | 7mm A/F |
| Recommended Torque Nm | = | 6Nm |
| Recommended Torque lb-in | = | 54lb-in |
