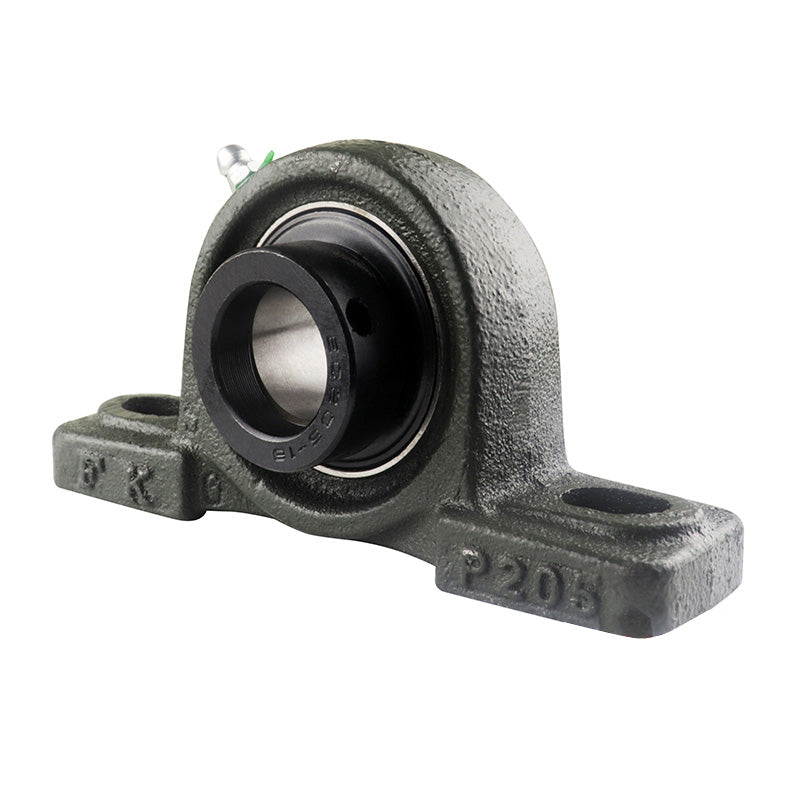

HCP217-55 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3-7/16 inch Eccentric Collar Insert

HCP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing. The bearing insert has an eccentric collar and grub screws to allow locking to the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar / grub screw fixing

Brand / Quality:

EU Budget - Economy Quality

Inside Diameter:

87.31mm = 3.437 (3-7/16) inch

Style:

HCP

Bolt Hole Centres:

246.86mm = 9.719 (9-23/32) inch
