SKU: HCFL218

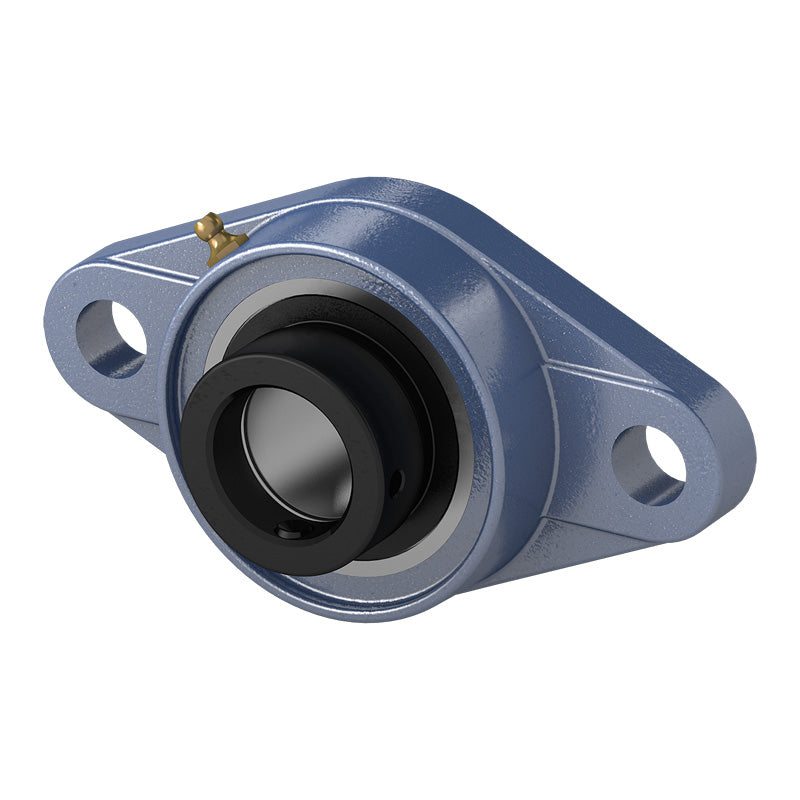

HCFL218 Metric Two Bolt Cast Iron Oval Housing with 90mm Eccentric Collar Insert
HCFL218 Metric Two Bolt Cast Iron Oval Housing with 90mm Eccentric Collar Insert
Out of stock
Share this product
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 90mm
- Style:
- HCFL
- Bolt Hole Centres:
- 265mm
Technical
Technical
| d | 90mm |
|---|---|
| a | 320mm |
| e | 265mm |
| i | 40mm |
| g | 24mm |
| l | 68mm |
| s | 25mm |
| b | 205mm |
| z | 88.1mm |
| B1 | 72.6mm |
| n | 24.5mm |
| Bolt size | M22 |
| Bearing no | HC218 |
| Housing no | FL218 |
| Weight | 9.953 kg |
