SKU: HC207

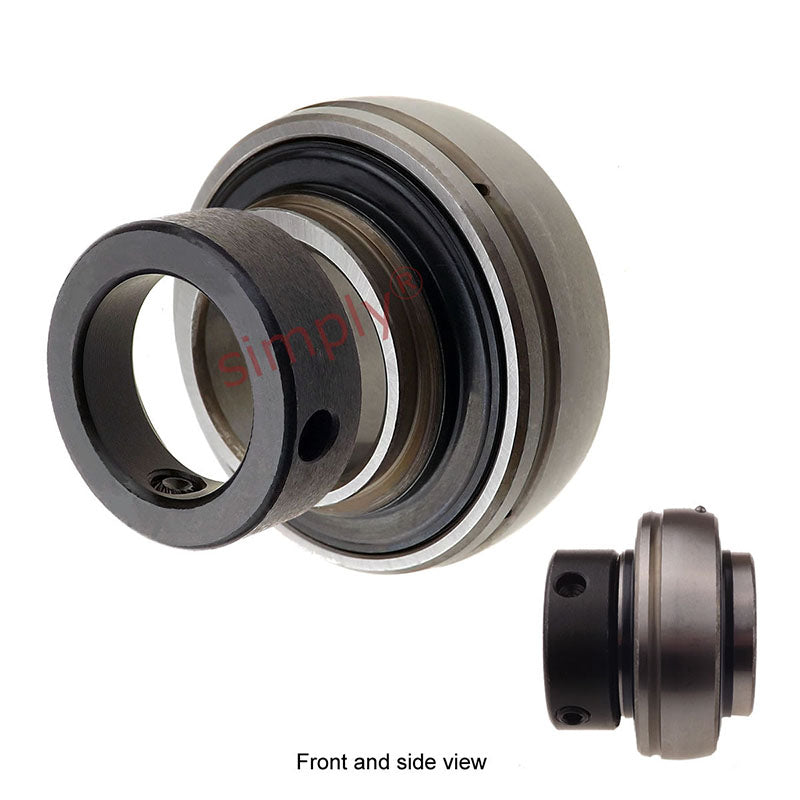

HC207 Eccentric Collar Full Width Insert 35mm Bore 72mm Outside Dia
HC207 Eccentric Collar Full Width Insert 35mm Bore 72mm Outside Dia
Regular price
$28.58
ex VAT
Regular price
Sale price
$28.58
ex VAT
Equivalent to: NA207
In stock
Price Break
3+
$13.55
4+
$12.79
9+
$12.64
19+
$12.49
49+
$12.34
99+
$12.18
499+
$11.42
999+
$11.27
1999+
$11.12
2999+
$10.97
4999+
$10.66
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
HC or -- YEL or GE.. KRR Series Eccentric Collar Type Insert: Sealed full width bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- HC
Technical
Technical

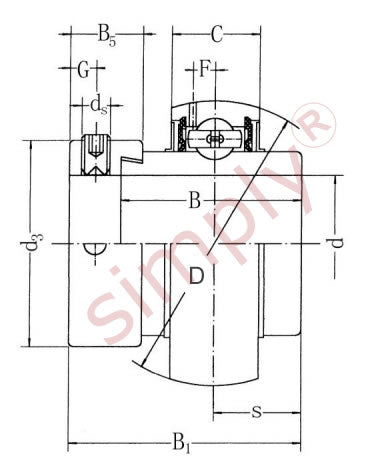

| d | 35mm |
|---|---|
| D | 72mm |
| B1 | 51.1mm |
| B | 37.6mm |
| C | 20mm |
| s | 18.8mm |
| ds | M8x1 |
| G | 6.8mm |
| B5 | 17.5mm |
| d3 | 55.6mm |
| F | 5.7mm |
| Dynamic load | 2621 kgf |
| Static load | 1560 kgf |
| Weight | 0.6 kg |
