SKU: H319E-SKF

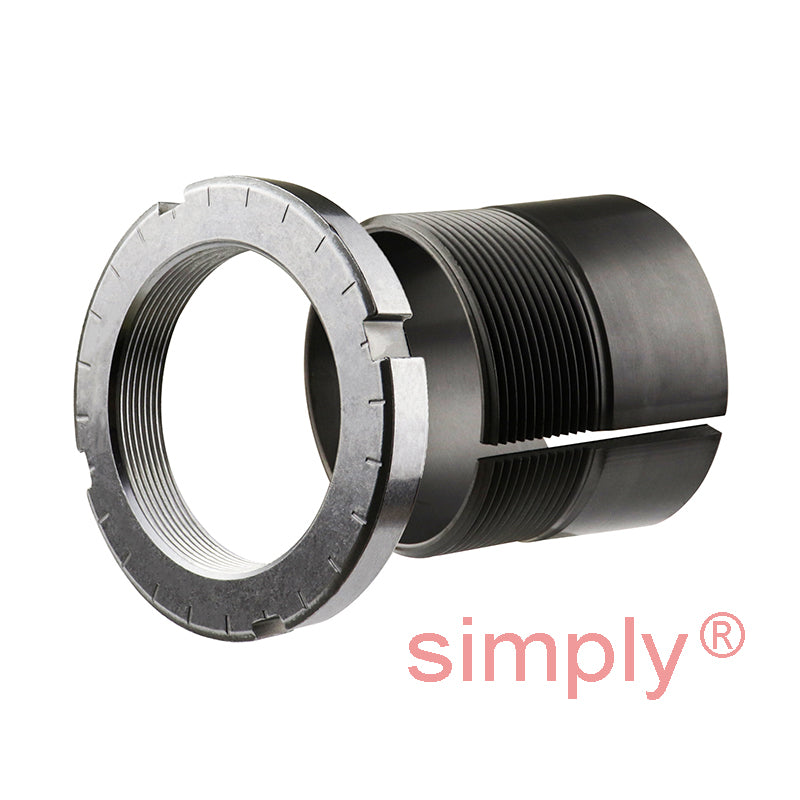

SKF H319E Adaptor Sleeve with Lock Nut and Locking Device for 85mm Shaft
SKF H319E Adaptor Sleeve with Lock Nut and Locking Device for 85mm Shaft
Out of stock
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 125mm
- Width:
- 68mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 85mm |
| d | 95mm |
| d3 | 125mm |
| B1 | 68mm |
| B2 | 20mm |
| G | Thread 95x2mm |
| Weight | 1.41 kg |
| --- | Assembly Parts |
| Sleeve | H319E |
| Nut | KMFE19 |
| Hydraulic nut | HMV19E |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2219K+taper>C2219K</a> |
