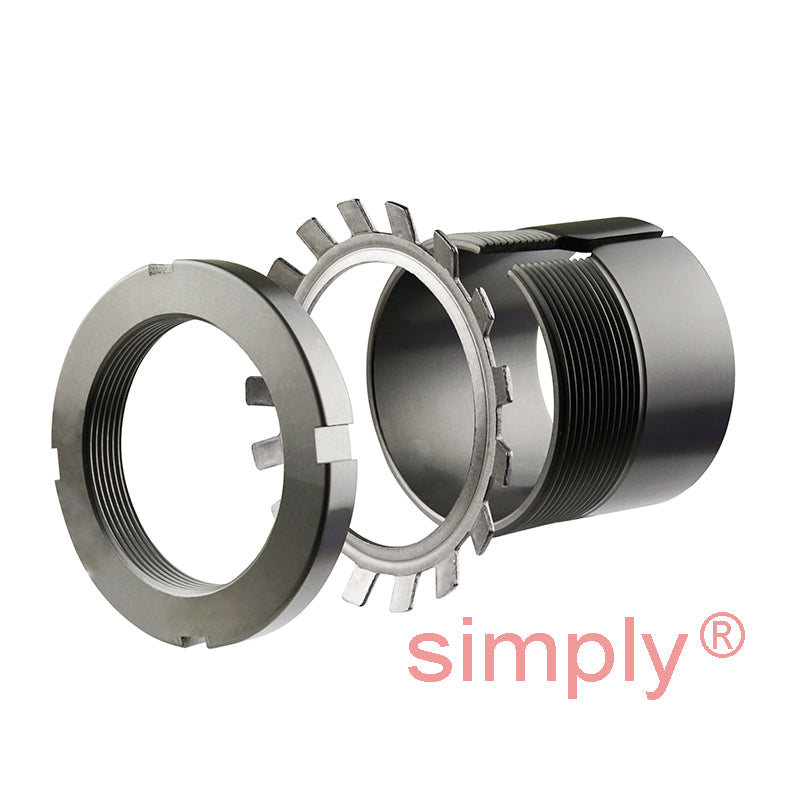

SKF H31361 Adaptor Sleeve with Lock Nut and Locking Device for 160mm Shaft

Name: SKF H31361 Adaptor Sleeve with Lock Nut and Locking Device for 160mm Shaft
Brand: SKF
SKU: H31361-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 160mm
Outside Diameter:: 210mm
Width:: 131mm

Technical

---	Dimensions
d1	160mm
d	180mm
d3	210mm
B1	131mm
B2	29.5mm
G	Thread 180x3mm
Weight	8.15 kg
---	Assembly Parts
Sleeve	H31361
Nut	KM136
Washer	MB136
Hydraulic nut	HMV36E
