• FAG H311 Adaptor Sleeve with Lock Nut and Locking Device for 50mm Shaft
  • FAG H311 Adaptor Sleeve with Lock Nut and Locking Device for 50mm Shaft
  • FAG
1 3

SKU: H311-FAG

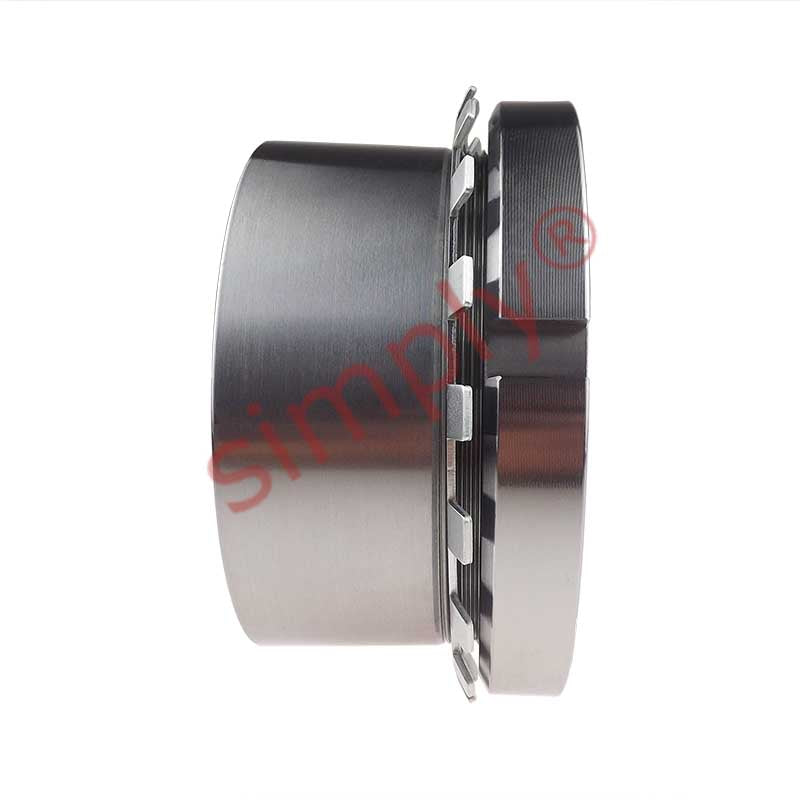

FAG H311 Adaptor Sleeve with Lock Nut and Locking Device for 50mm Shaft

FAG H311 Adaptor Sleeve with Lock Nut and Locking Device for 50mm Shaft
$41.40 ex VAT
$41.40 ex VAT
Sale Sold out

In stock

Price Break
10+ $19.63
19+ $18.53
29+ $18.31
39+ $18.09
49+ $17.87
74+ $17.65
99+ $16.55
199+ $16.32
249+ $16.10
499+ $15.88
999+ $15.44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
FAG - High Quality
Inside Diameter:
50mm
Outside Diameter:
75mm
Width:
45mm
Technical
--- Dimensions
d1 50mm
d 55mm
d3 75mm
B1 45mm
B2 12.5mm
G Thread 55x2mm
Weight 0.336 kg

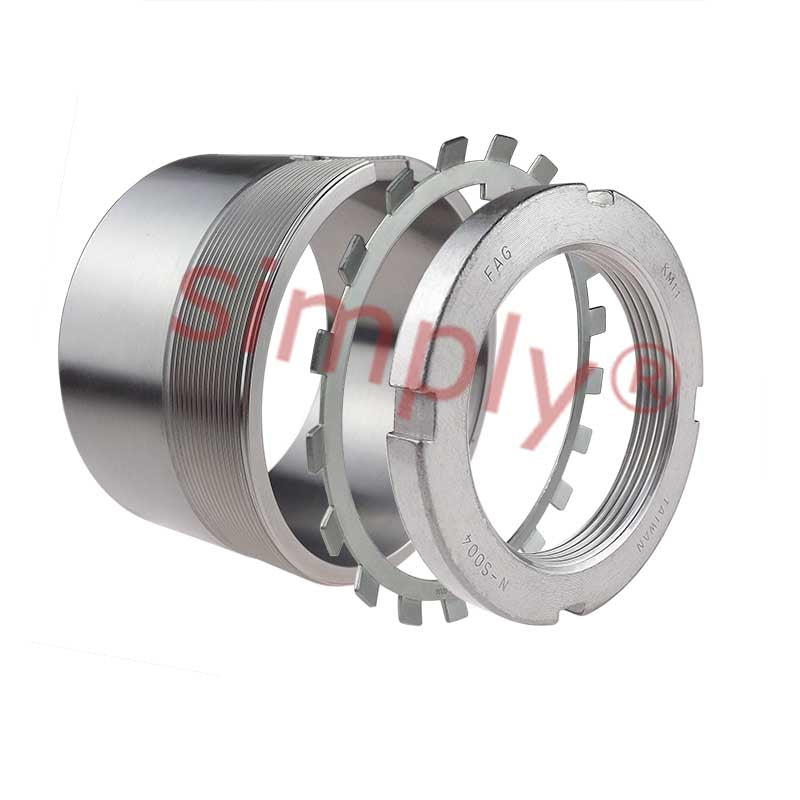

--- Assembly Parts
Sleeve H311
Nut KM11
Washer MB11
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2211K+taper+self+open>2211K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1311K+taper+self+open>1311K</a>
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22211K+taper>22211K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21311K+taper>21311K</a>
