SKU: GX120F-SKF

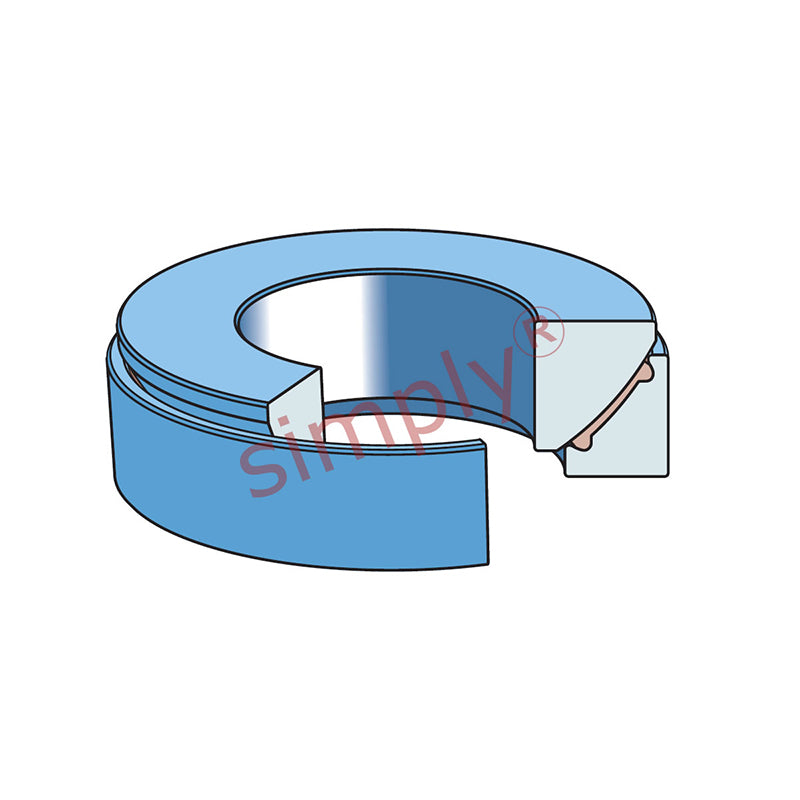

SKF GX120F Maintenance Free Thrust Spherical Plain Bearing 120x230x64mm

Name: SKF GX120F Maintenance Free Thrust Spherical Plain Bearing 120x230x64mm
Brand: SKF
SKU: GX120F-SKF
Price: 3078.63 CAD
Availability: InStock

$3,078.63 ex VAT

Sale Sold out

Equivalent to: GE120AW GX120T

In stock

Price Break

10+ $1,461.75

19+ $1,379.63

29+ $1,363.20

39+ $1,346.78

49+ $1,330.35

74+ $1,313.93

99+ $1,231.81

199+ $1,215.38

249+ $1,198.96

499+ $1,182.54

999+ $1,149.69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Spherical Plain Bearings: Maintenance-free spherical plain thrust bearings with sliding contact surface combination, steel/ PTFE composite.

Brand / Quality:: SKF - High Quality
Inside Diameter:: 120mm
Outside Diameter:: 230mm
Width:: 64mm

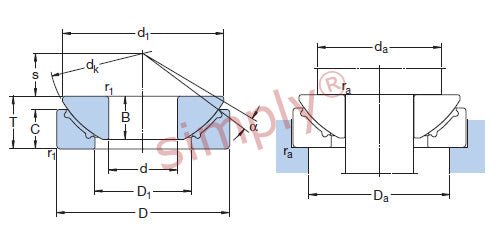

Technical

d	120mm
D	230mm
T	64mm
Angle	4 degree
Dynamic load	880 kN
Static load	1430 kN
dk	250mm
d1	220mm
D1	145mm
B	53.5mm
C	50mm
r1 min	1mm
s	52.5mm
da min	170mm
Da max	190mm
ra max	1mm
Weight	14 kg
