SKU: GRAE50-NPP-B-INA

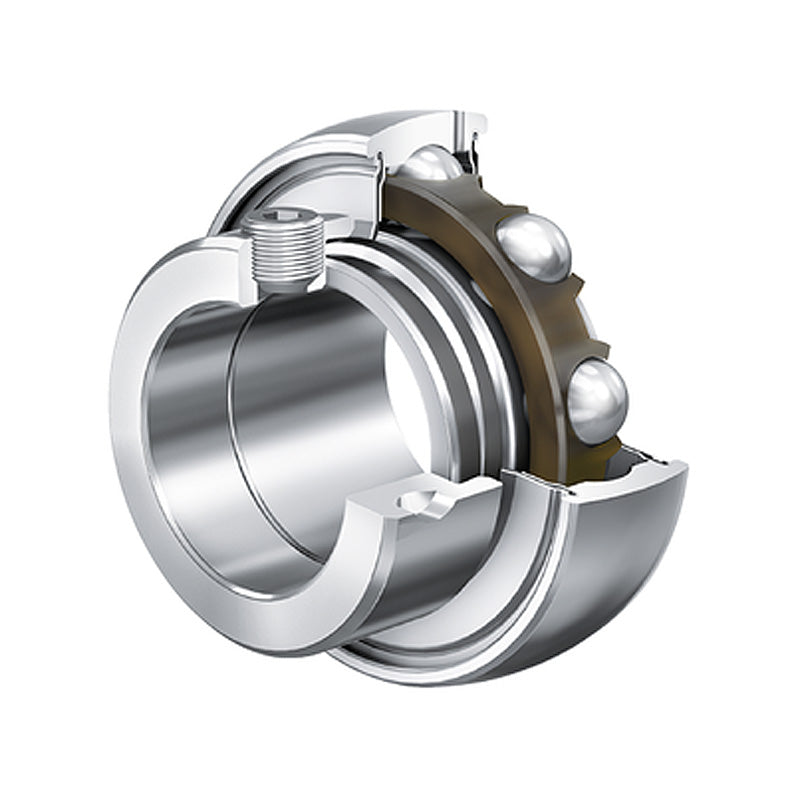

INA GRAE50XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 50x90x43.8mm
INA GRAE50XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 50x90x43.8mm
Regular price
$93.43
ex VAT
Regular price
Sale price
$93.43
ex VAT
In stock
Price Break
3+
$44.30
5+
$41.82
10+
$41.32
15+
$40.82
20+
$40.32
30+
$39.82
40+
$37.34
50+
$36.84
60+
$36.34
75+
$35.84
100+
$34.85
Quantity
Couldn't load pickup availability
Description
Description
|
INA GRAE..-NPP-B Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 43.8mm
Technical
Technical
| d | 50mm |
|---|---|
| Dsp | 90mm |
| B1 | 43.8mm |
| B | 30.2mm |
| C | 22mm |
| Ca | 6.9mm |
| d2 | 59.4mm |
| d3 max | 69mm |
| S | 11mm |
| W | 5mm |
| Dynamic load Cr | 35000 N |
| Static load C0r | 23200 N |
| Weight | 0.77 kg |
