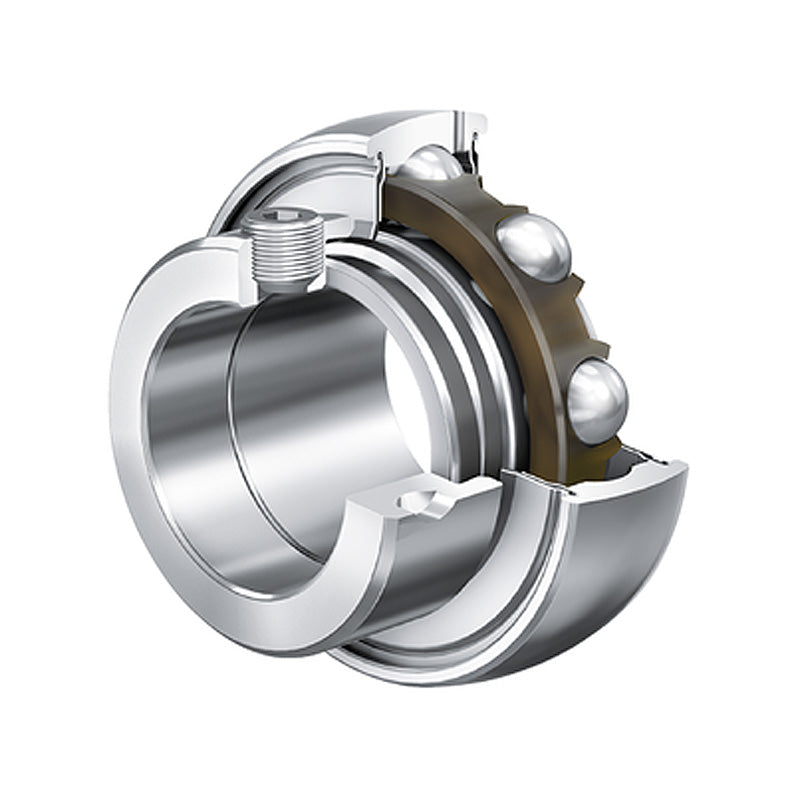

INA GRA008NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 12.7x40x28.6mm
INA GRA008NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 12.7x40x28.6mm
Out of stock
Description
Description
|
INA GRA..-NPP-B-AS2/V Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Outside Diameter:
- 40mm
- Width:
- 28.6mm
Technical
Technical
| d | 1/2 inch |
|---|---|
| d | 12.7mm |
| Dsp | 1.5748 inch |
| Dsp | 40mm |
| B1 | 1.1260 inch |
| B1 | 28.6mm |
| B | 0.748 inch |
| C | 0.472 inch |
| Ca | 0.134 inch |
| d2 | 0.906 inch |
| d3 | 1.102 inch |
| S | 0.256 inch |
| W | 1/8 inch |
| Dynamic load Cr | 2200 lbf |
| Dynamic load Cr | 9600 N |
| Static load C0r | 1070 lbf |
| Static load C0r | 4750 N |
| Weight | 0.26 lbs |
