SKU: GLE30-60-500-DURB

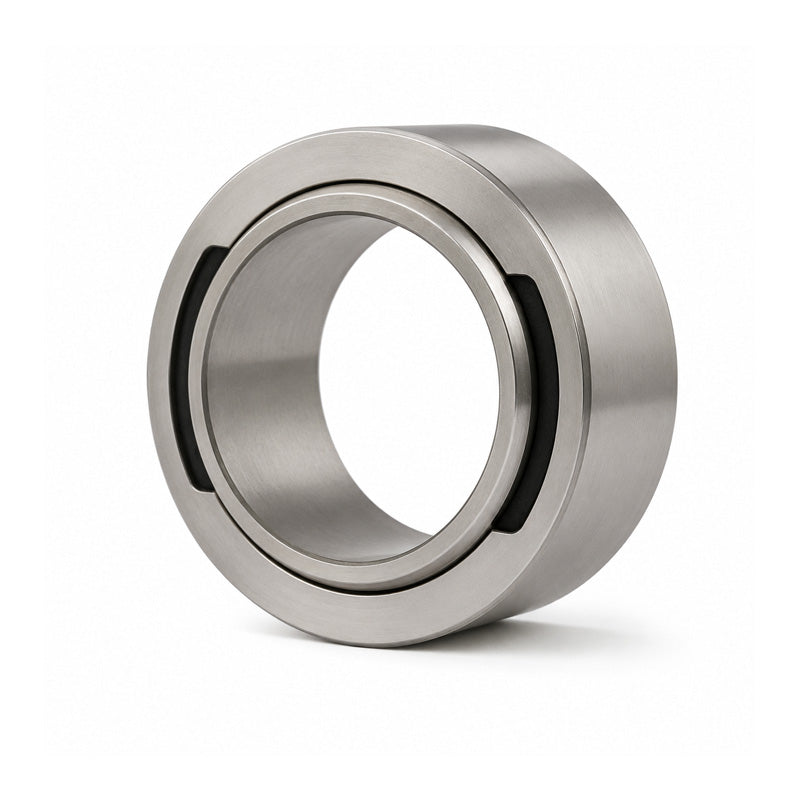

Durbal GLE30-60-500 Maintenance Free Stainless Steel / PTFE Lined Spherical Plain Bearing 30x47x22mm
Equivalent to: GE30TXGR GE30TXG3E-2LS
Out of stock
Description
DURBAL Heavy-Duty Stainless Steel Spherical-Plain Bearing - Sliding Combination Steel/PTFE: These spherical bearings consist of a hardened, stainless steel joint ball and stainless steel outer ring injected with DURBAL-Glide (Polyamide-PTFE-fibreglass-Compound). DURBAL-Glide (race) made of polyamide-PTFE-glass fibre compound, maintenance-free, encapsulates penetrating foreign bodies. This fact and the greater overlay thickness compared to other sliding materials assure longer durability. For use with small swivelling movements and at low speeds. Temperature range: -30 deg C to +60 deg C.
Benefits: Suitable for use with impact loads, No clearance: radial clearance 0 – 10 µm, Free from non-ferrous metals.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 30mm
- Material:
- PTFE Lined
Technical
| d | 30mm |
|---|---|
| D | 47mm |
| B | 22mm |
| C | 18mm |
| d1 | 34mm |
| dk | 40.7mm |
| rs | 0.6mm |
| r1s | 0.6mm |
| tilt angle α | 6 deg |
| weight | 0.145kg |
| basic load rating dyn C | 54 kN |
| basic load rating stat Co | 63.8 kN |
| radial clearance CN | 0-10 µm |
