SKU: GIS50-FLURO

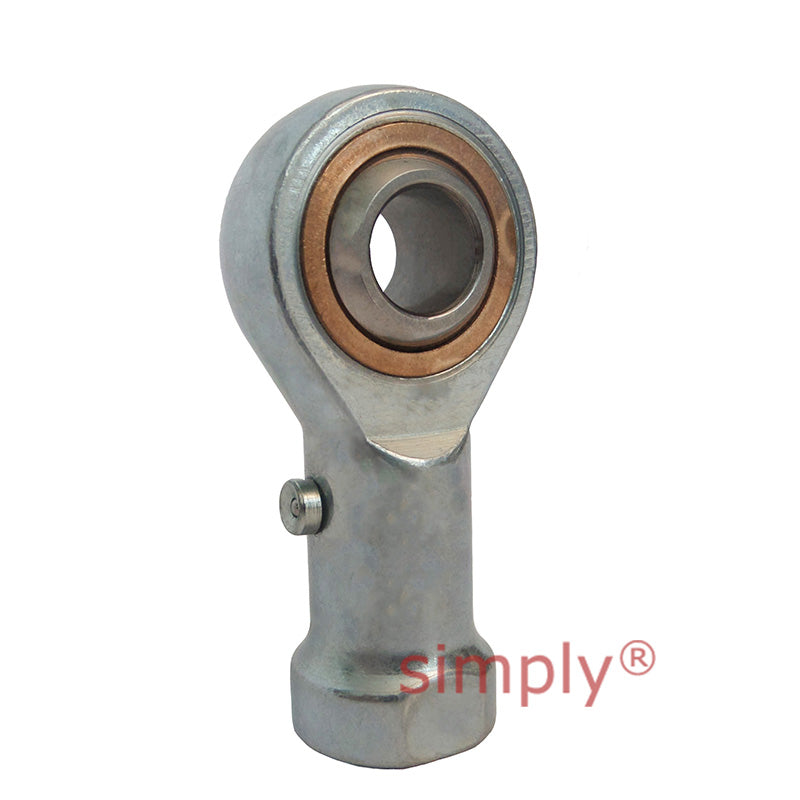

Fluro GIS50 Right Hand Steel / Bronze Female Plain Rod End M48x2 Thread
Fluro GIS50 Right Hand Steel / Bronze Female Plain Rod End M48x2 Thread
Out of stock
Share this product
Description
Description
Fluro GIS Series Steel / Bronze Maintenance Required Female Plain Rod Ends: Rod Ends with female thread made from free-cutting or heat-treated steel, zinc plated and fitted with a grease nipple. Especially suited for high speed applications.
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M48x2
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Thread Length:
- 48x2mm
- Inside Diameter:
- 50mm
- Material:
- Steel / Bronze
Technical
Technical
| Bore Size D | 50mm |
|---|---|
| B | 60mm |
| M | 45mm |
| A | 116mm |
| F | 160mm |
| L | 218mm |
| K | 78mm |
| J | 65mm |
| O | 55.9mm |
| SW | 65mm |
| Thread Size G | M48x2 |
| GL | 65mm |
| Static Load Co | 308kN |
| Dynamic Load | 185kN |
| Limiting Speed | 230rev/min |
| Approx weight | 5kg |
