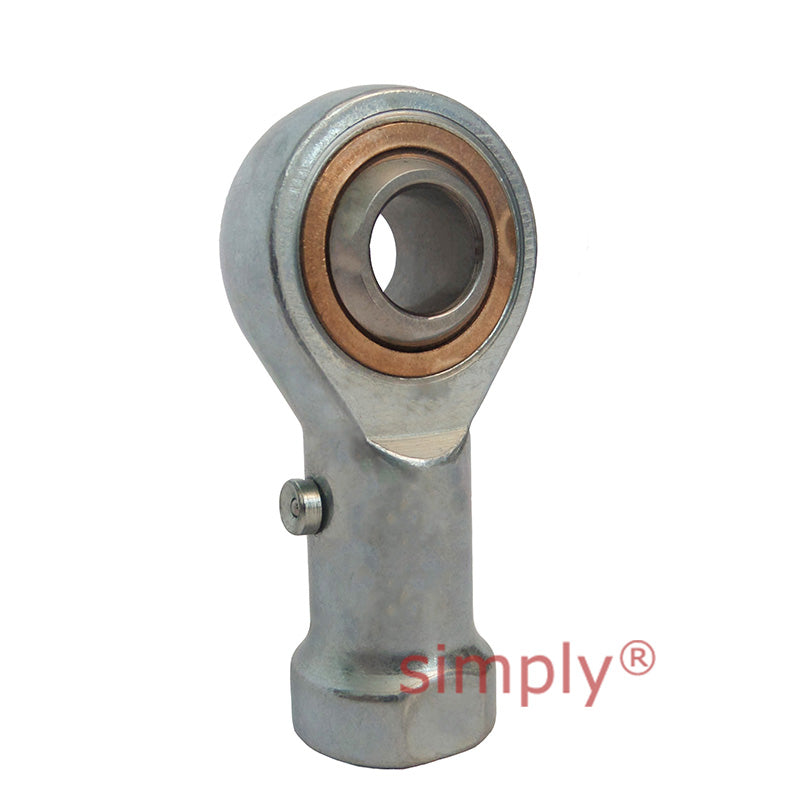

Fluro GIS25 Right Hand Steel / Bronze Female Plain Rod End M24x2 Thread
Fluro GIS25 Right Hand Steel / Bronze Female Plain Rod End M24x2 Thread
Out of stock
Share this product
Description
Description
Fluro GIS Series Steel / Bronze Maintenance Required Female Plain Rod Ends: Rod Ends with female thread made from free-cutting or heat-treated steel, zinc plated and fitted with a grease nipple. Especially suited for high speed applications.
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M24x2
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Thread Length:
- 24x2mm
- Inside Diameter:
- 25mm
- Material:
- Steel / Bronze
Technical
Technical
| Bore Size D | 25mm |
|---|---|
| B | 31mm |
| M | 22mm |
| A | 60mm |
| F | 94mm |
| L | 124mm |
| K | 42mm |
| J | 33.5mm |
| O | 29.6mm |
| SW | 36mm |
| Thread Size G | M24x2 |
| GL | 42mm |
| Static Load Co | 62kN |
| Dynamic Load | 47kN |
| Limiting Speed | 440rev/min |
| Approx weight | 0.75kg |
