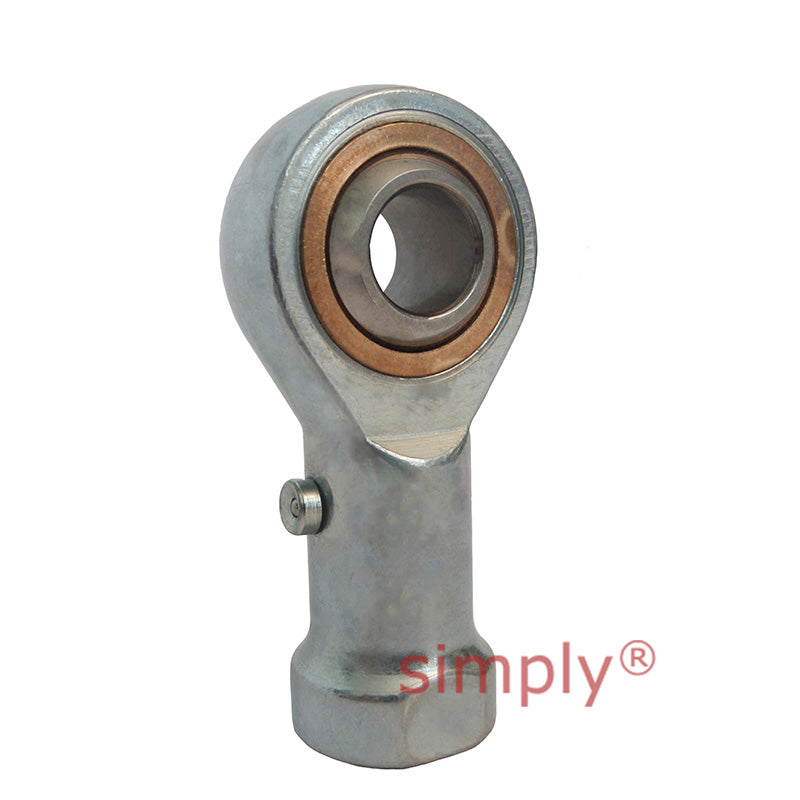

Fluro GIS18 Right Hand Steel / Bronze Female Plain Rod End M18x1.5 Thread
Fluro GIS18 Right Hand Steel / Bronze Female Plain Rod End M18x1.5 Thread
Out of stock
Share this product
Description
Description
Fluro GIS Series Steel / Bronze Maintenance Required Female Plain Rod Ends: Rod Ends with female thread made from free-cutting or heat-treated steel, zinc plated and fitted with a grease nipple. Especially suited for high speed applications.
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M18x1.5
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Thread Length:
- 18x1.5mm
- Inside Diameter:
- 18mm
- Material:
- Steel / Bronze
Technical
Technical
| Bore Size D | 18mm |
|---|---|
| B | 23mm |
| M | 16.5mm |
| A | 46mm |
| F | 71mm |
| L | 94mm |
| K | 31mm |
| J | 25mm |
| O | 21.8mm |
| SW | 27mm |
| Thread Size G | M18x1.5 |
| GL | 32mm |
| Static Load Co | 38.5kN |
| Dynamic Load | 26kN |
| Limiting Speed | 600rev/min |
| Approx weight | 0.32kg |
