SKU: GIS02-FLURO

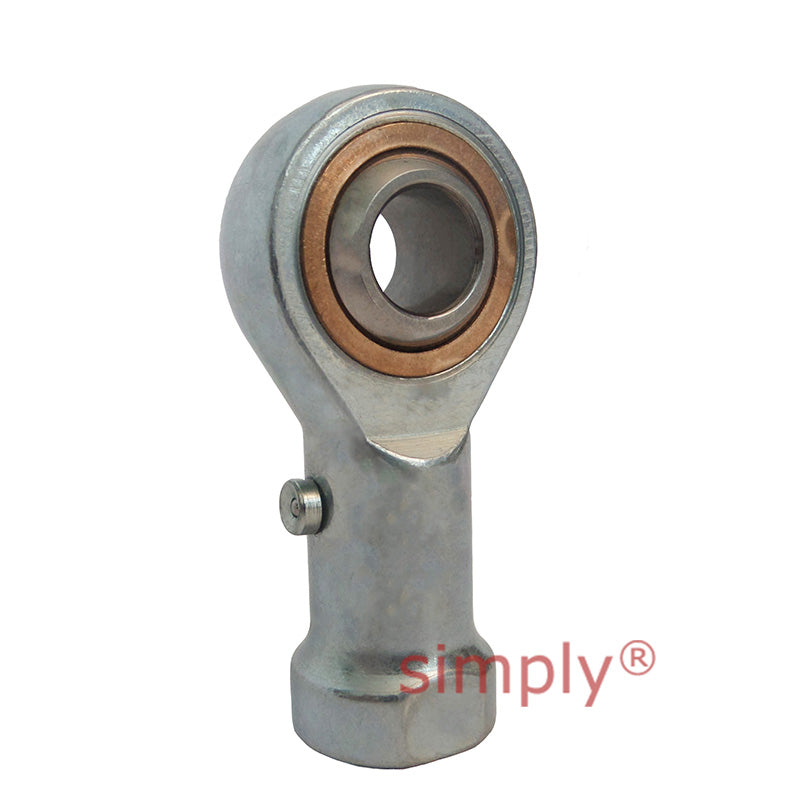

Fluro GIS02 Right Hand Steel / Bronze Female Plain Rod End (without lubrication hole) M2 Thread
Fluro GIS02 Right Hand Steel / Bronze Female Plain Rod End (without lubrication hole) M2 Thread
Out of stock
Share this product
Description
Description
Fluro GIS Series Steel / Bronze Maintenance Required Female Plain Rod Ends: Rod Ends with female thread made from free-cutting or heat-treated steel, zinc plated and fitted with a grease nipple. Especially suited for high speed applications.
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M2
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Thread Length:
- 2mm
- Inside Diameter:
- 2mm
- Material:
- Steel / Bronze
Technical
Technical
| Bore Size D | 2mm |
|---|---|
| B | 4.8mm |
| M | 3.6mm |
| A | 9mm |
| F | 16mm |
| L | 20.5mm |
| K | 4.5mm |
| J | 3.8mm |
| O | 2.6mm |
| SW | 4mm |
| Thread Size G | M2 |
| GL | 7mm |
| Static Load Co | 3kN |
| Dynamic Load | 1.1kN |
| Approx weight | 0.003kg |
