SKU: GILRS35-FLURO

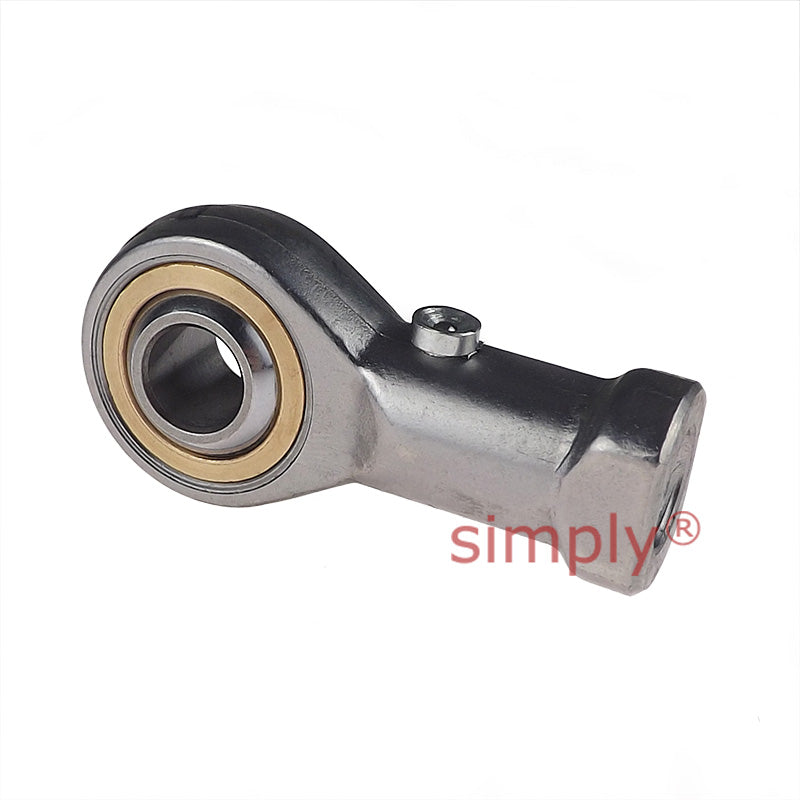

Fluro GILRS35 Left Hand Stainless Steel / Bronze Female Plain Rod End M36x2 Thread
Fluro GILRS35 Left Hand Stainless Steel / Bronze Female Plain Rod End M36x2 Thread
Out of stock
Share this product
Description
Description
Fluro GIRS Series Stainless Steel / Bronze Maintenance Required Female Plain Rod Ends: Rod Ends with female thread made from stainless steel, regreasable through grease nipple in housing. For use in corrosive environments.
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M36x2
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Thread Length:
- 36x2mm
- Inside Diameter:
- 35mm
- Material:
- Stainless Steel / Bronze
Technical
Technical
| Bore Size D | 35mm |
|---|---|
| B | 43mm |
| M | 28mm |
| A | 80mm |
| F | 125mm |
| L | 165mm |
| K | 58mm |
| J | 46mm |
| O | 37.7mm |
| SW | 50mm |
| Thread Size G | M36x2 |
| GL | 56mm |
| Static Load Co | 191kN |
| Dynamic Load | 80kN |
| Limiting Speed | 330rev/min |
| Approx weight | 1.6kg |
