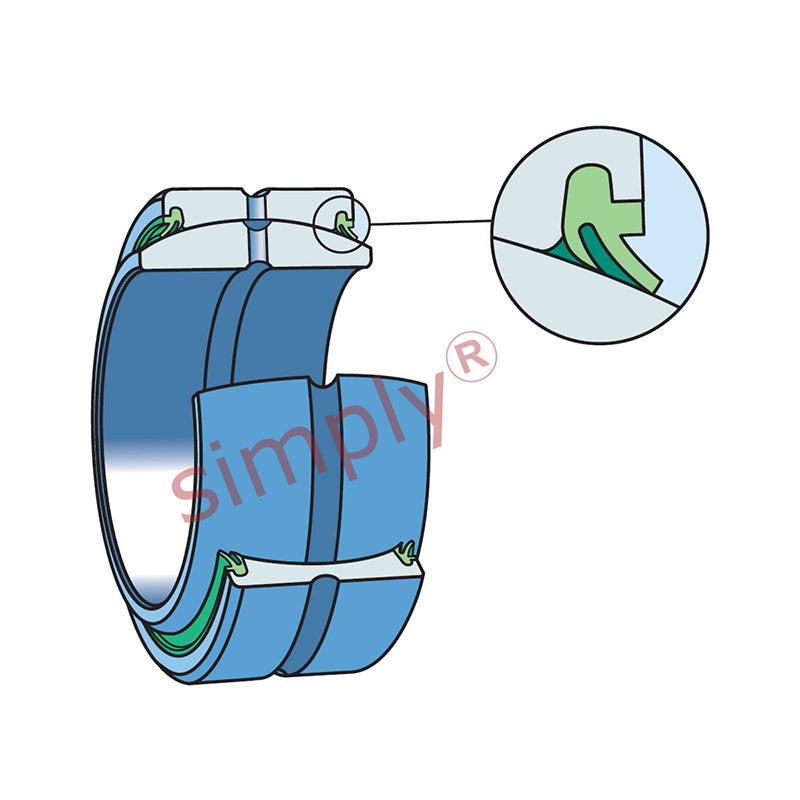

SKF GE280ES2RS Double Sealed Spherical Plain Bearing 280x400x120x155mm
SKF GE280ES2RS Double Sealed Spherical Plain Bearing 280x400x120x155mm
Out of stock
Description
Description
|
SKF GE..ES-2RS Series Spherical Plain Bearings: This series is classed as radial spherical plain bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these spherical plain bearings are double lip sealed to prevent ingress of dirt and moisture and require maintenance from time to time in the form of re-lubrication via an annular lubrication groove around its outer and inner rings. Dependent on installation design the lubricant may be passed through the housing or spindle directly into the bearing at any point around the groove which has small holes to direct the lubricant onto the mating surfaces. These are metric sized spherical plain bearings. The bearings are manganese phosphated and the sliding contact surface is then treated with a running-in lubricant. This reduces friction and wear during the running-in period. Application: Suitable for heavy static, shock or alternating loads. A characteristic of SKF steel / steel spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load Benefits: Re-lubricate-able, double sealed. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 280mm
- Outside Diameter:
- 400mm
- Width:
- 155mm
Technical
Technical
| d | 280mm |
|---|---|
| D | 400mm |
| B | 155mm |
| C | 120mm |
| Max misalignment angle | 6 degrees |
| Dynamic load | 3570 kN |
| Static load | 17850 kN |
| dk | 350mm |
| b | 15.5mm |
| b1 | 15.5mm |
| M | 7mm |
| r1 min | 1.1mm |
| r2 min | 1.1mm |
| da min | 294mm |
| da max | 313.5mm |
| Da max | 388.5mm |
| Da min | 344.5mm |
| ra max | 1mm |
| rb max | 1mm |
| Weight | 65.06 kg |
