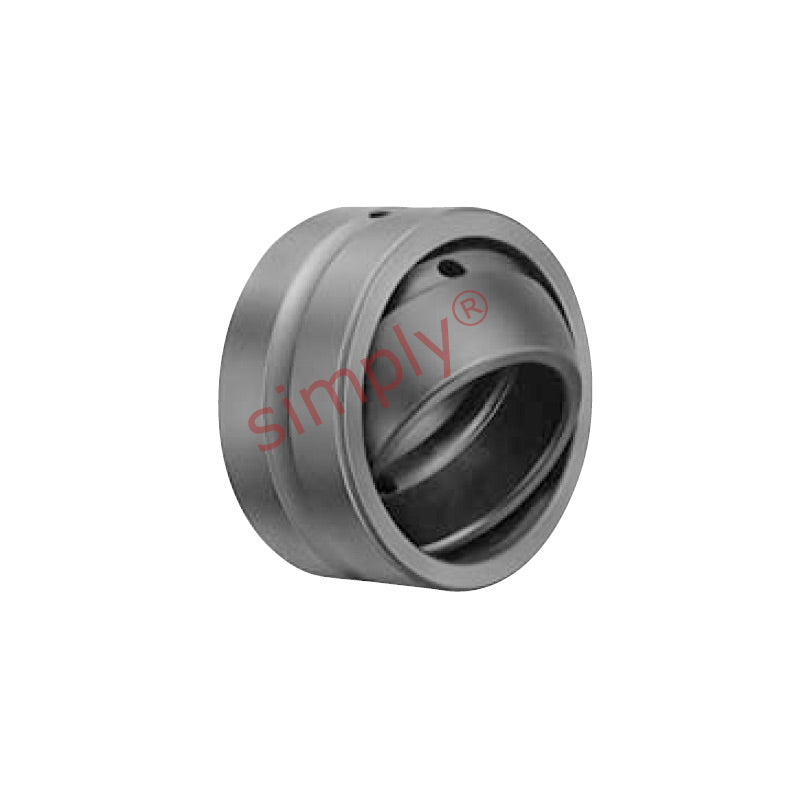

SKF GE20TXG3E Maintenance Free Spherical Plain Bearing Stainless Steel / PTFE Fabric 20x35x16x12mm
SKF GE20TXG3E Maintenance Free Spherical Plain Bearing Stainless Steel / PTFE Fabric 20x35x16x12mm
Regular price
$213.80
ex VAT
Regular price
Sale price
$213.80
ex VAT
In stock
Price Break
10+
$101.51
19+
$95.81
29+
$94.67
39+
$93.53
49+
$92.39
74+
$91.25
99+
$85.55
199+
$84.41
249+
$83.26
499+
$82.12
999+
$79.84
Quantity
Couldn't load pickup availability
Description
Description
|
SKF GE20TXG3E Series Spherical Plain Bearing: This series is classed as maintenance free radial spherical plain bearings. Comprising of sliding contact surfaces of X17 CrNi16-2 stainless steel against PTFE impregnated fabric these spherical plain bearings are unsealed and require no maintenance but provision for protecting the bearing from environmental contaminants should be made. Application: Suitable for very heavy, constant direction loads, where low friction is required; limited suitability for alternating loads, shock loads. A characteristic of SKF steel / against PTFE impregnated fabric spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load. Benefits: Maintenance free operation. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 35mm
- Width:
- 16mm
Technical
Technical

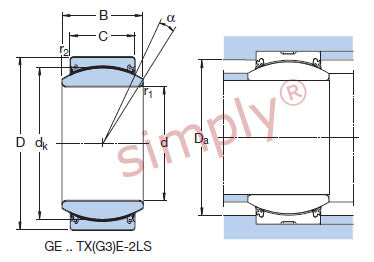

| d | 20mm |
|---|---|
| D | 35mm |
| B | 16mm |
| C | 12mm |
| Max misalignment angle | 9 degrees |
| Dynamic load | 83 kN |
| Static load | 140 kN |
| dk | 29mm |
| r1 min | 0.3mm |
| r2 min | 0.3mm |
| da min | 22.1mm |
| da max | 24.2mm |
| Da max | 33.2mm |
| Da min | 27.6mm |
| ra max | 0.3mm |
| rb max | 0.3mm |
| Weight | 0.065 kg |
