SKU: GAY012-NPP-B-AS2/V-INA

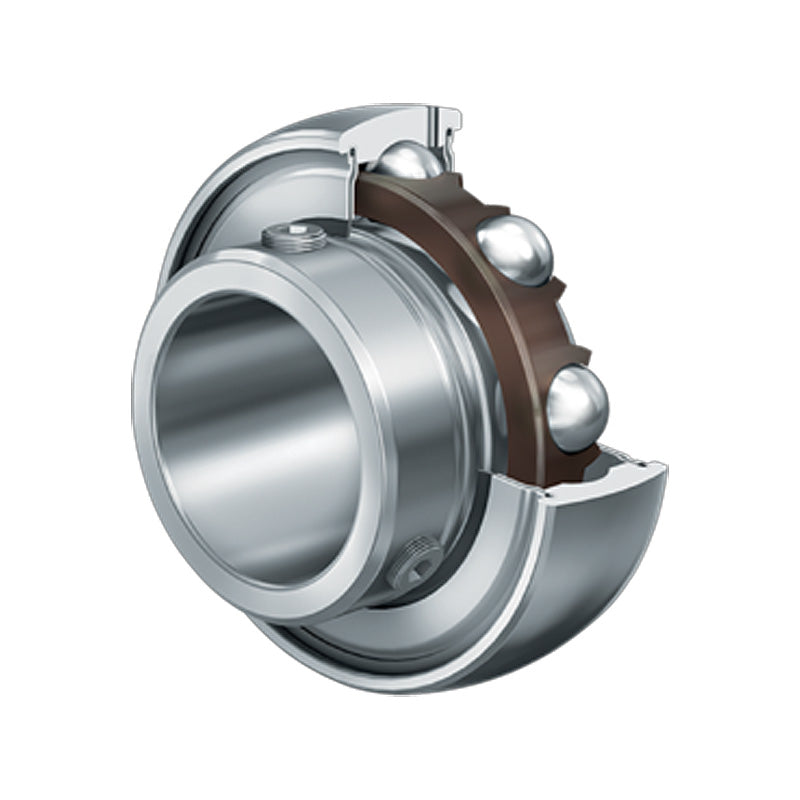

INA GAY012NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Grub Screws 19.05x47x25mm
INA GAY012NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Grub Screws 19.05x47x25mm
Out of stock
Description
Description
|
INA GAY..NPP-B Series Inserts: Bearing insert with spherical outer race, P seals and grub screws. In these radial insert ball bearings, the inner ring is located on the shaft by means of two grub screws offset by 120 degrees. This location method is suitable for bearing arrangements with a constant direction of rotation or, under low speed and load, for an alternating direction of rotation. The grub screws are self-retaining and have a fine pitch thread with cup point for secure location of the bearings. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 47mm
- Width:
- 25mm
Technical
Technical
| d | 3/4 inch |
|---|---|
| d | 19.05mm |
| Dsp | 1.8504 inch |
| Dsp | 47mm |
| B | 0.9843 inch |
| B | 25mm |
| A | 0.177 inch |
| C | 0.551 inch |
| Ca | 0.157 inch |
| d1 | 1.114 inch |
| d2 | 1.051 inch |
| S | 0.276 inch |
| W | 3/32 inch |
| Dynamic load Cr | 2900 lbf |
| Dynamic load Cr | 12800 N |
| Static load C0r | 1480 lbf |
| Static load C0r | 6600 N |
| Weight | 0.29 lbs |
