SKU: GARSW10-FLURO

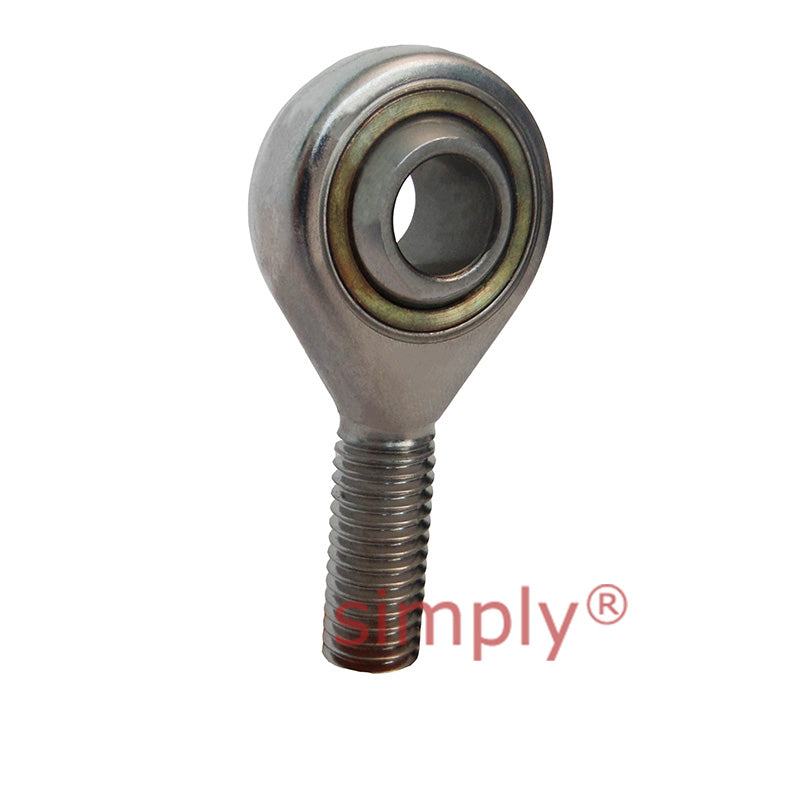

Fluro GARSW10 Right Hand Stainless Steel / PTFE Lined Maintenance Free Male Plain Rod End M10 Thread
Fluro GARSW10 Right Hand Stainless Steel / PTFE Lined Maintenance Free Male Plain Rod End M10 Thread
Out of stock
Share this product
Description
Description
Fluro GARSW Series Zinc Plated Steel / PTFE Lined Maintenance Free Male Plain Rod Ends: Rod Ends with male thread made from stainless steel with PTFE liner, maintenance free. For use at high dynamic pressure and tension loads in corrosive environments.
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M10
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Thread Length:
- 10mm
- Inside Diameter:
- 10mm
- Material:
- Stainless Steel / PTFE Lined
Technical
Technical
| Bore Size D | 10mm |
|---|---|
| B | 14mm |
| M | 10.5mm |
| A | 28mm |
| F | 48mm |
| L | 62mm |
| O | 12.9mm |
| Thread Size G | M10 |
| GL | 28mm |
| Static Load Co | 25.5kN |
| Dynamic Load | 23.4kN |
| Limiting Speed | 350rev/min |
| Approx weight | 0.056kg |
