SKU: GARSW05-FLURO

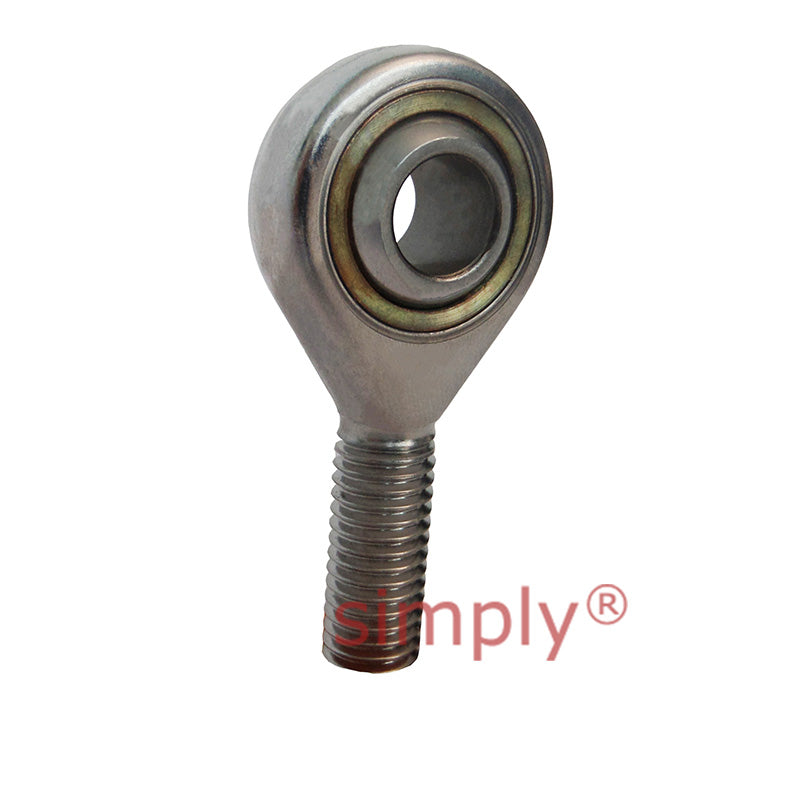

Fluro GARSW05 Right Hand Stainless Steel / PTFE Lined Maintenance Free Male Plain Rod End M5 Thread
Fluro GARSW05 Right Hand Stainless Steel / PTFE Lined Maintenance Free Male Plain Rod End M5 Thread
Out of stock
Description
Description
Fluro GARSW Series Zinc Plated Steel / PTFE Lined Maintenance Free Male Plain Rod Ends: Rod Ends with male thread made from stainless steel with PTFE liner, maintenance free. For use at high dynamic pressure and tension loads in corrosive environments.
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M5
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Thread Length:
- 5mm
- Inside Diameter:
- 5mm
- Material:
- Stainless Steel / PTFE Lined
Technical
Technical
| Bore Size D | 5mm |
|---|---|
| B | 8mm |
| M | 6mm |
| A | 18mm |
| F | 33mm |
| L | 42mm |
| O | 7.7mm |
| Thread Size G | M5 |
| GL | 19mm |
| Static Load Co | 6.2kN |
| Dynamic Load | 7.5kN |
| Limiting Speed | 600rev/min |
| Approx weight | 0.013kg |
