SKU: GAOW14-FLURO

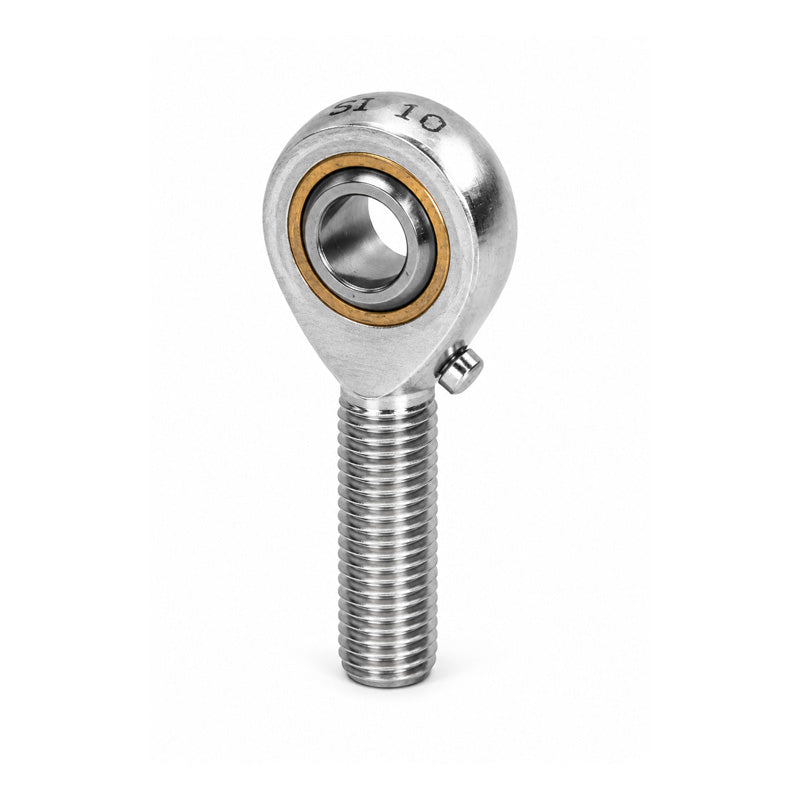

Fluro GAOW14 Right Hand Zinc Plated Steel / PTFE Lined Maintenance Free Male Plain Rod End M14 Thread
Fluro GAOW14 Right Hand Zinc Plated Steel / PTFE Lined Maintenance Free Male Plain Rod End M14 Thread
Out of stock
Share this product
Description
Description
Fluro GAOW Series Zinc Plated Steel / PTFE Lined Maintenance Free Male Plain Rod Ends: Rod Ends with male thread made from free-cutting or heat-treated steel, zinc plated, maintenance free. For use in applications involving minimum axial loads and limited oscillating movements.
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M14
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Thread Length:
- 14mm
- Inside Diameter:
- 14mm
- Material:
- Steel / PTFE Lined
Technical
Technical
| Bore Size D | 14mm |
|---|---|
| B | 19mm |
| M | 13.5mm |
| A | 36mm |
| F | 60mm |
| L | 78mm |
| O | 16.8mm |
| Thread Size G | M14 |
| GL | 38mm |
| Static Load Co | 26kN |
| Dynamic Load | 5kN |
| Approx weight | 0.129kg |
