SKF FYTL30THR Thermoplastic Oval Housing for the Food Industry with 30mm Insert
SKF FYTL30THR Thermoplastic Oval Housing for the Food Industry with 30mm Insert
Out of stock
Description
Description
|
SKF Oval Flanged Y-bearing Units for the Food Industry: This unit is optimised for handling shock loads and high vibration levels. It incorporates a steel coil embedded in the polymer to provide high dimensional stability and excellent strength. The housing of this unit is made of a chemical and corrosion resistant composite material which is designed to withstand frequent washdowns. The non-porous surface resists the accumulation of bacteria-forming food particles and the light-grey colour makes visual inspection easy. These units are lubricated with food-grade grease. Benefits: Designed for the food industry, lubricated with food-grade grease, optimised for handling shock loads and high vibration levels. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Style:
- FYTL
- Bolt Hole Centres:
- 117mm

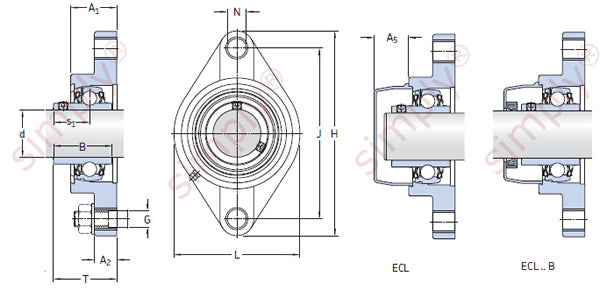

Technical
Technical
| d | 30mm |
|---|---|
| A1 | 30.5mm |
| A2 | 13.3mm |
| B | 38.1mm |
| H | 148mm |
| J | 117mm |
| L | 80mm |
| N | 11mm |
| G | 10mm |
| s1 | 22.2mm |
| T | 40.2mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 16.3 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 3800 rpm |
| A5 | 27mm |
| Weight | 0.42 kg |
| Compatible end cover closed | ECL206 |
| Compatible end cover open | ECL206B |
