SKU: FYT2.3/16FM-SKF

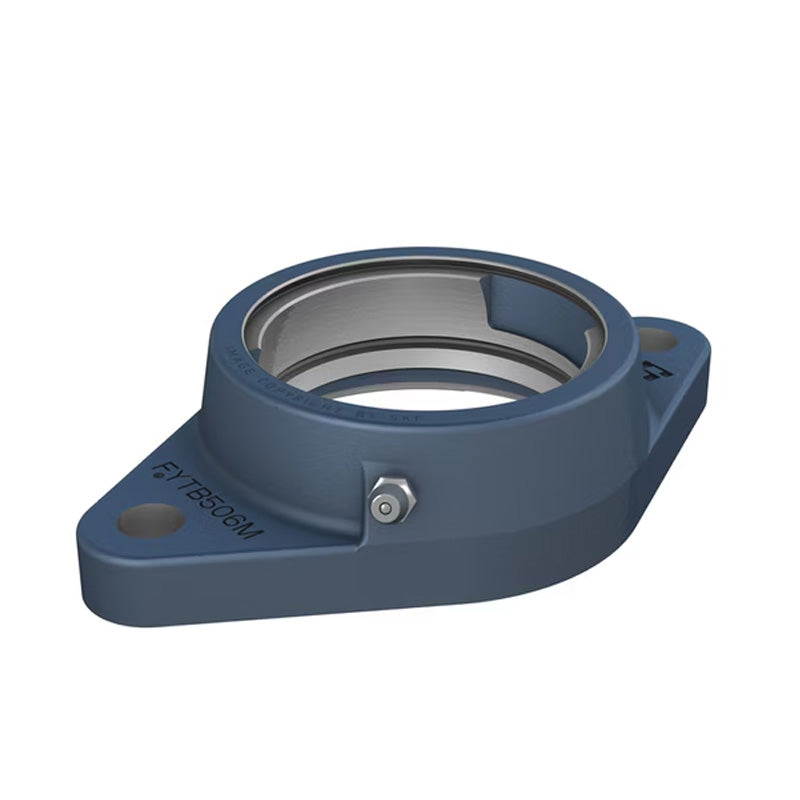

SKF FYT2-3/16FM Oval Cast Housing with Grub Screw 2-3/16 inch Insert
SKF FYT2-3/16FM Oval Cast Housing with Grub Screw 2-3/16 inch Insert
Regular price
$245.23
ex VAT
Regular price
Sale price
$245.23
ex VAT
In stock
Price Break
10+
$116.28
20+
$109.75
30+
$108.44
40+
$107.14
50+
$105.83
75+
$104.52
100+
$97.99
200+
$96.69
250+
$95.38
500+
$94.07
1000+
$91.46
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- FYT
- Bolt Hole Centres:
- 184.2mm

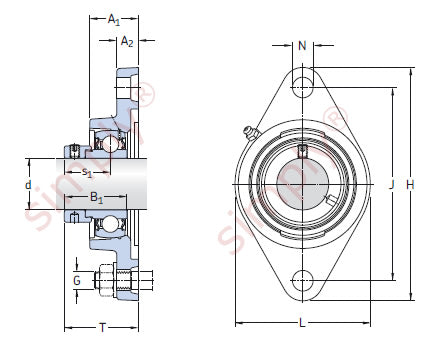

Technical
Technical
| d | 2-3/16 inch |
|---|---|
| A1 | 47.6mm |
| A2 | 20.6mm |
| B1 | 48.4mm |
| H | 216mm |
| J | 184.2mm |
| L | 127mm |
| N | 19mm |
| G | 16mm |
| s1 | 36.4mm |
| T | 65.8mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 43.6 kN |
| Fatigue load limit | 1.25 kN |
| Limiting speed | 3600 rpm |
| Weight | 3.35 kg |
| Housing | Insert |
