SKU: FYT1.3/8RM-SKF

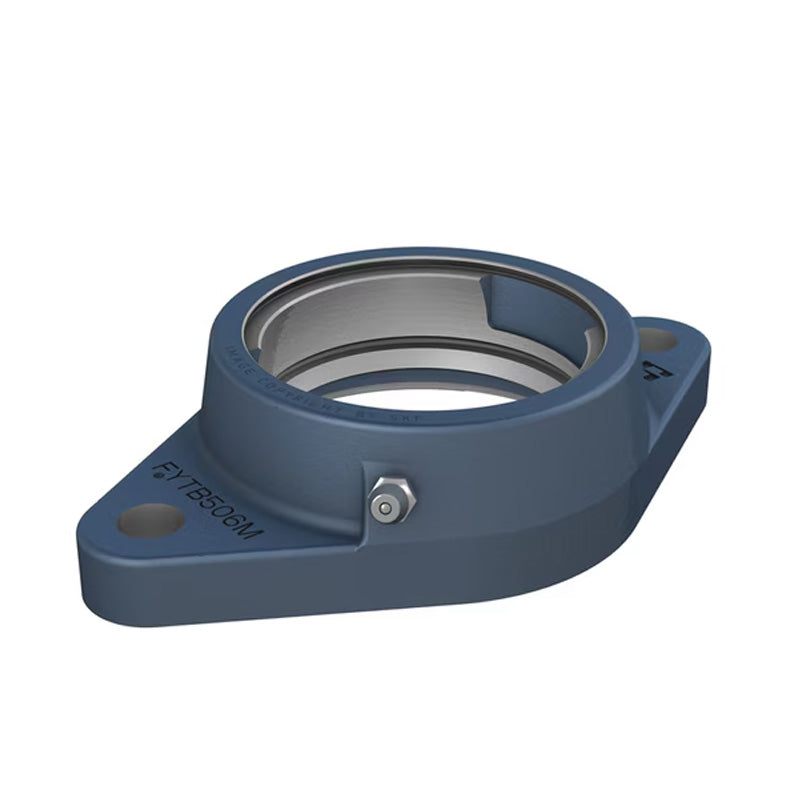

SKF FYT1-3/8RM Oval Cast Housing with Grub Screw 1-3/8 inch Insert
SKF FYT1-3/8RM Oval Cast Housing with Grub Screw 1-3/8 inch Insert
Regular price
$80.39
ex VAT
Regular price
Sale price
$80.39
ex VAT
In stock
Price Break
10+
$38.12
20+
$35.98
30+
$35.55
40+
$35.12
50+
$34.69
75+
$34.26
100+
$32.12
200+
$31.69
250+
$31.27
500+
$30.84
1000+
$29.98
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- FYT
- Bolt Hole Centres:
- 130.2mm
Technical
Technical

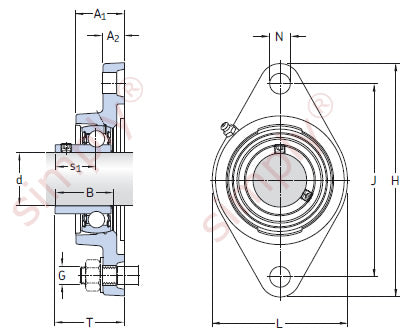

| d | 1-3/8 inch |
|---|---|
| A1 | 34.5mm |
| A2 | 13mm |
| B | 35mm |
| H | 156mm |
| J | 130.2mm |
| L | 96mm |
| N | 14.3mm |
| G | 12mm |
| s1 | 25.5mm |
| T | 46.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit | 0.655 kN |
| Limiting speed | 5300 rpm |
| Weight | 1.15 kg |
| Housing | Insert |
