SKU: FYL1.THR-SKF

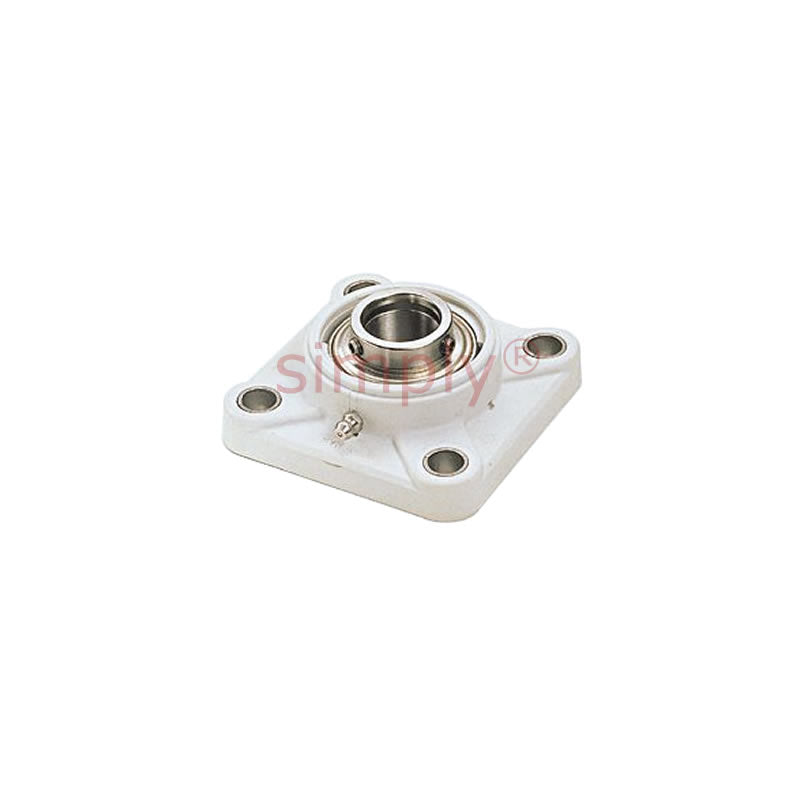

SKF FYL1-THR Square Housing for the Food Industry with 1 inch Insert
SKF FYL1-THR Square Housing for the Food Industry with 1 inch Insert
Out of stock
Description
Description
|
SKF Square Flanged Y-bearing Units for the Food Industry: This unit is optimised for handling shock loads and high vibration levels. It incorporates a steel coil embedded in the polymer to provide high dimensional stability and excellent strength. The housing of this unit is made of a chemical and corrosion resistant composite material which is designed to withstand frequent washdowns. The non-porous surface resists the accumulation of bacteria-forming food particles and the light-grey colour makes visual inspection easy. These units are lubricated with food-grade grease. Benefits: Designed for the food industry, lubricated with food-grade grease, optimised for handling shock loads and high vibration levels. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- FYL
- Bolt Hole Centres:
- 70mm
Technical
Technical
| d | 1 inch |
|---|---|
| A1 | 28mm |
| A2 | 14.3mm |
| B | 34.1mm |
| J | 70mm |
| L | 95mm |
| N | 11mm |
| G | 10mm |
| s1 | 19.8mm |
| T | 36.7mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 11.9 kN |
| Fatigue load limit | 0.335 kN |
| Limiting speed | 4300 rpm |
| A5 | 22mm |
| Weight | 0.34 kg |
| Housing | FYL505 |
| Insert | YAR205-100-2RFGR/HV |
| Compatible end cover closed | ECL205 |
| Compatible end cover open | ECL205-100B |
