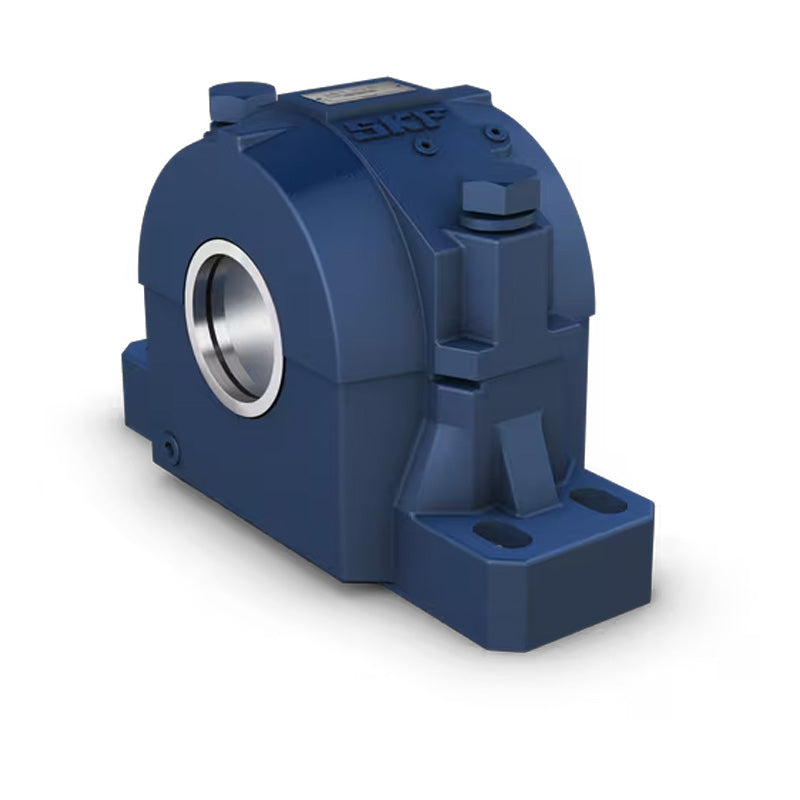

SKF FSAF22616/2-11/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF FSAF22616/2-11/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 68.26mm = 2.687 (2-11/16) inch
Technical
Technical
| Housing | FSAF616 |
|---|---|
| Triple Ring Seal | LOR44 |
| Taconite Seal | TER44 |
| Bearing | 22316EK |
| Adaptor Sleeve | HA2316 |
| Fixing Rings | 1 x SR19-16 |
| End Cover | EPR8 |
| da | 2-11/16 inch |
| A1 | 3-7/8 inch = 98.4mm |
| A2 | 6-1/2 inch = 165.1mm |
| A3 | 9-3/16 inch = 233.4mm |
| H | 8-1/4 inch = 209.6mm |
| H1 | 4-1/2 inch = 108mm |
| H2 | 1-3/4 inch = 44.4mm |
| Static oil level H3 Roller bearing | 1-11/16 inch = 42.9mm |
| Static oil level H3 Ball bearing | 1-13/16 inch = 46mm |
| J max | 12-5/8 inch = 320.7mm |
| J min | 10-5/8 inch = 269.9mm |
| J1 | 2-1/8 inch = 54mm |
| L | 14-1/4 inch = 362mm |
| X | 3/16 inch = 4.76mm |
| Bolts (required) G | (4) 5/8 inch = 16mm |
| Weight | 29.9 kg |
