SKU: FSAF22518/3-1/4-SKF

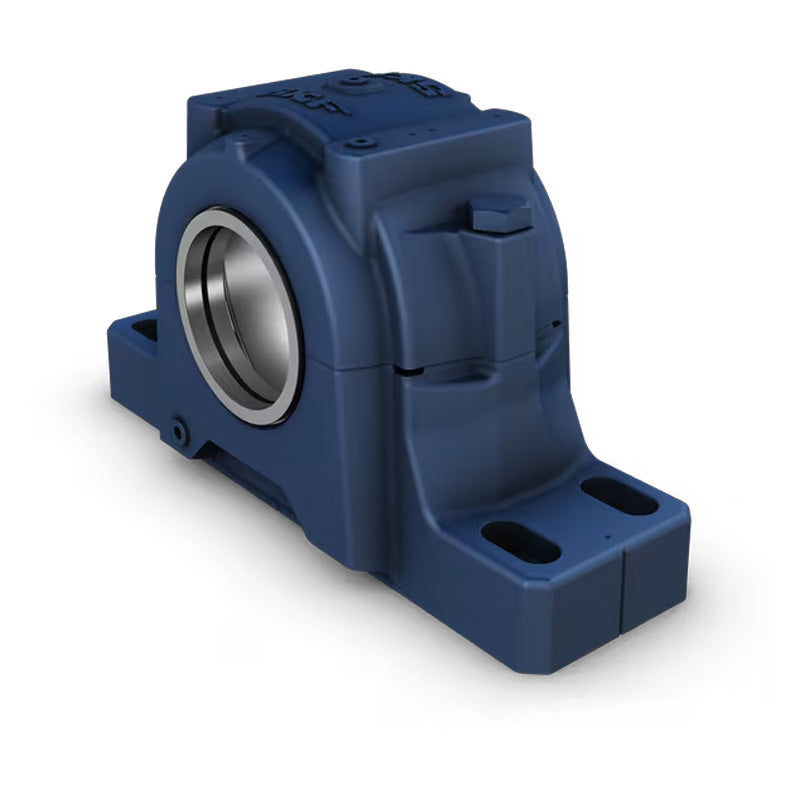

SKF FSAF22518/3-1/4 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF FSAF22518/3-1/4 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
Technical
Technical
| Housing | FSAF518 |
|---|---|
| Triple Ring Seal | LOR189 |
| Taconite Seal | TER189 |
| Bearing | 22218EK |
| Adaptor Sleeve | HE318 |
| Fixing Rings | 1 x SR18-15 |
| End Cover | EPR11 |
| da | 3-1/4 inch |
| A1 | 3-7/8 inch = 98.4mm |
| A2 | 5-7/8 inch = 149.2mm |
| A3 | 8-1/8 inch = 206.4mm |
| H | 7-23/32 inch = 196.1mm |
| H1 | 4 inch = 101.6mm |
| H2 | 1-5/8 inch = 41.3mm |
| Static oil level H3 Roller bearing | 1-1/2 inch = 38.1mm |
| Static oil level H3 Ball bearing | 1-1/2 inch = 38.1mm |
| J max | 11-3/4 inch = 298.5mm |
| J min | 10-1/4 inch = 260.4mm |
| J1 | 2-1/8 inch = 54mm |
| L | 13-3/4 inch = 349.3mm |
| X | 3/16 inch = 4.76mm |
| Bolts (required) G | (4) 5/8 inch = 16mm |
| Weight | 20 kg |
