SKU: FSAF1613/2-3/16-SKF

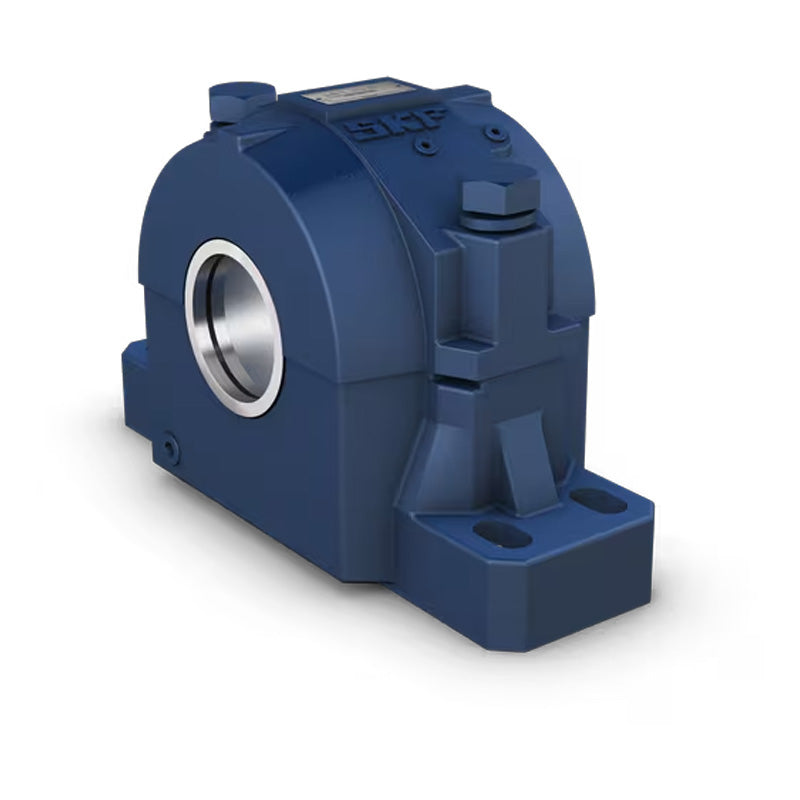

SKF FSAF1613/2-3/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF FSAF1613/2-3/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
Technical
Technical
| Housing | FSAF613 |
|---|---|
| Triple Ring Seal | LOR32 |
| Taconite Seal | TER32 |
| Bearing | 1313EK |
| Adaptor Sleeve | HA313 |
| Fixing Rings | 2 x SR1613 |
| End Cover | EPR7 |
| da | 2-3/16 inch |
| A1 | 3-1/2 inch = 88.9mm |
| A2 | 5-5/16 inch = 134.9mm |
| A3 | 8-1/4 inch = 209.6mm |
| H | 6-19/32 inch = 167.5mm |
| H1 | 3-1/2 inch = 88.9mm |
| H2 | 1-1/4 inch = 31.8mm |
| Static oil level H3 Roller bearing | 1-13/32 inch = 35.7mm |
| Static oil level H3 Ball bearing | 1-7/16 inch = 36.5mm |
| J max | 11 inch = 279.4mm |
| J min | 9-5/8 inch = 244.5mm |
| J1 | 2-1/8 inch = 54mm |
| L | 13 inch = 330.2mm |
| X | 3/16 inch = 4.76mm |
| Bolts (required) G | (4) 5/8 inch = 16mm |
| Weight | 16.3 kg |
