SKU: FHR-1-1/8

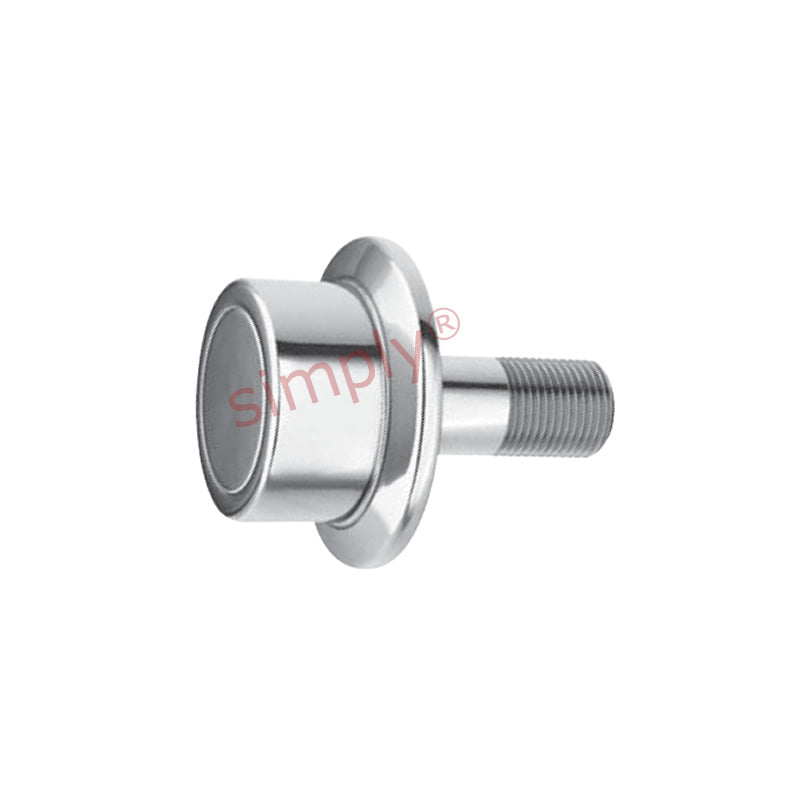

Major Brand FHR1-1/8 Hex Head Flanged Hi-Roller Bearing 1-1/8 inch Outside Diameter Allow 7-10 Days
Major Brand FHR1-1/8 Hex Head Flanged Hi-Roller Bearing 1-1/8 inch Outside Diameter Allow 7-10 Days
Regular price
$150.03
ex VAT
Regular price
Sale price
$150.03
ex VAT
Equivalent to: FHR-112-A FLR-1-1/8 FCF-1-1/8
In stock
Price Break
3+
$71.15
4+
$67.15
9+
$66.35
19+
$65.55
29+
$64.75
39+
$63.95
49+
$59.96
59+
$59.16
249+
$58.36
499+
$57.56
999+
$55.96
Quantity
Couldn't load pickup availability
Description
Description
|
Flanged Hi-Roller Bearing: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. Benefits: Ideal for use in environments where dust or high moisture is present. |
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Width:
- 19.84mm = 0.781 (25/32) inch
Technical
Technical

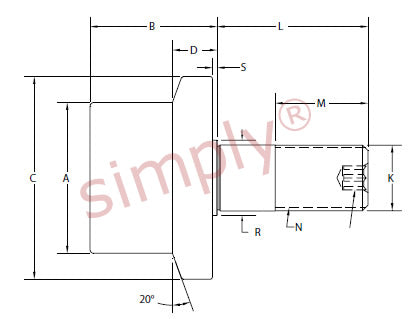

| A | 1.125 inch |
|---|---|
| B | 0.781 inch |
| C | 1.5 inch |
| D | 0.219 inch |
| K | 0.4375 inch |
| L | 1 inch |
| M | 0.5 inch |
| Thread class 2A N | 7/16-20 UNF |
| R | 0.5 inch |
| S | 0.031 inch |
| Basic dynamic rating | 630 lbs |
| Dynamic thrust load rating | 140 lbs |
| Max static capacity | 230 lbs |
