SKU: FC45A-RHP

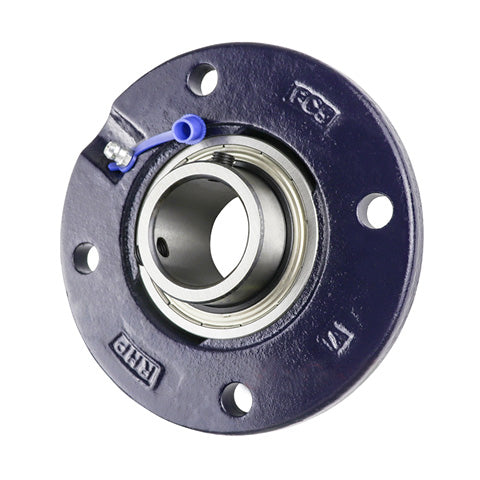

RHP FC45A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert

RHP FC45A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
Regular price $151.39 ex VAT
Regular price Sale price $151.39 ex VAT
Sale Sold out

In stock

Price Break
10+ $71.79
20+ $67.76
30+ $66.95
40+ $66.14
50+ $65.34
75+ $64.53
100+ $60.50
200+ $59.69
250+ $58.88
500+ $58.08
1000+ $56.46
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

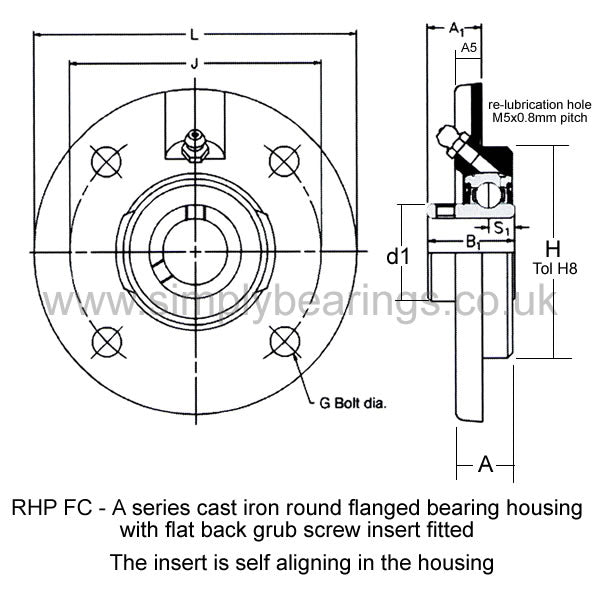

Technical
Bore 45mm
L 155mm
H 105mm
J 130mm
G 12mm
A 25mm
A1 28.18mm
A5 12mm
B1 41.18mm
s1 11.05mm
d1 57.3mm
Dynamic load 32500 N
Static load 20500 N
Rec max speed 3700 rpm
Weight 2.2 kg
Insert <a href="advanced_search_result.php?keywords=1245-45AG+insonly">1245-45AG Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
