SKU: FC1.3/16DEC-RHP

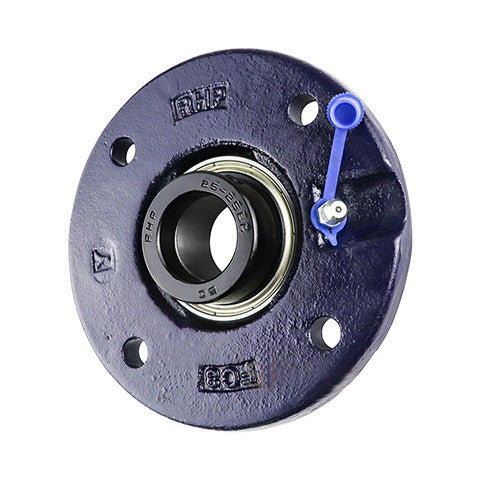

RHP FC1.3/16DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/16 inch Insert
RHP FC1.3/16DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/16 inch Insert
Out of stock
Share this product
Description
Description
|
RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- FC
- Pitch Circle Diameter:
- 100.01mm = 3.937 inch
Technical
Technical
| Bore | 1-3/16 inch |
|---|---|
| L | 4.921 inch |
| H | 3.15 inch |
| J | 3.937 inch |
| G | 0.375 inch |
| A | 0.807 inch |
| A2 | 0.97 inch |
| A5 | 0.374 inch |
| B2 | 1.405 inch |
| s2 | 0.721 inch |
| d2 | 1.75 inch |
| Dynamic load | 19500 N |
| Static load | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1230-1-3/16ECG+insonly">1230-1-3/16ECG Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
