SKU: FC1.1/2A-RHP

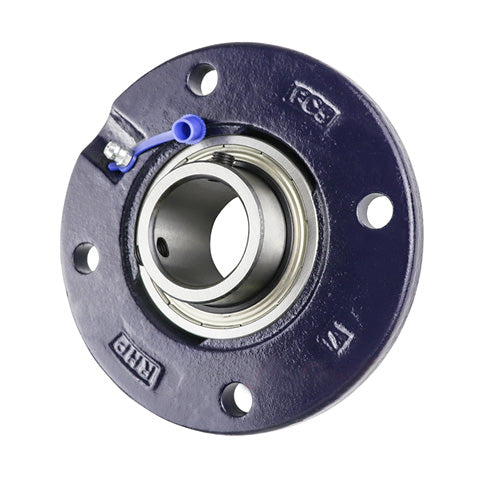

RHP FC1.1/2A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/2 inch Insert

RHP FC1.1/2A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/2 inch Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-1/2 inch
L 5.709 inch
H 3.937 inch
J 4.724 inch
G 0.375 inch
A 0.906 inch
A1 1.149 inch
A5 0.453 inch
B1 1.621 inch
s1 0.435 inch
d1 2.075 inch
Dynamic load 32500 N
Static load 19900 N
Rec max speed 4000 rpm
Weight 1.8 kg
Insert <a href="advanced_search_result.php?keywords=1240-1-1/2AG+insonly">1240-1-1/2AG Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
