SKU: FBL-M03-DUN

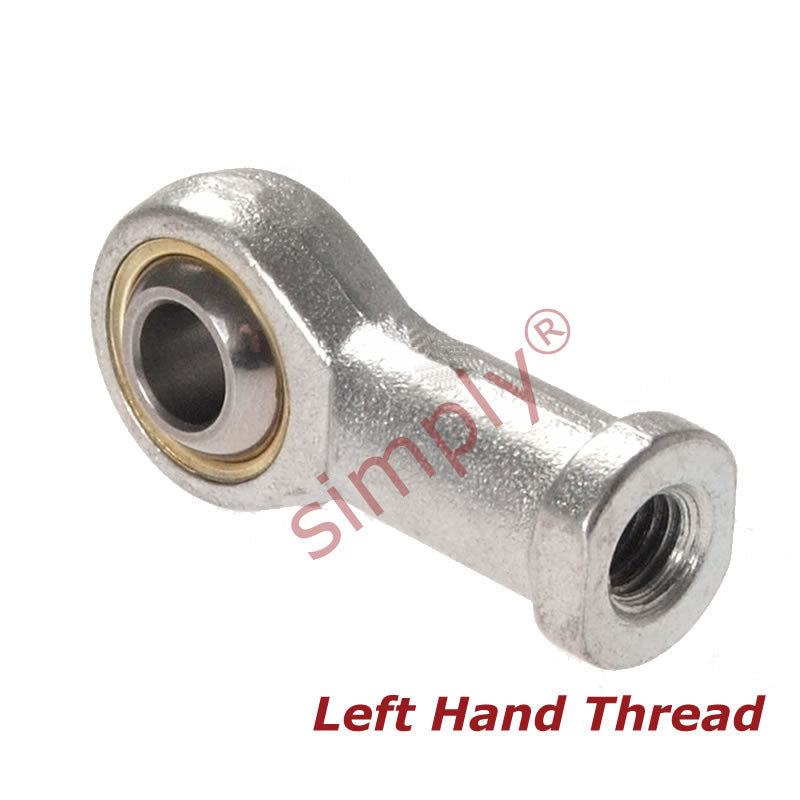

Dunlop FBL-M03 Left Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M3x0.5 Thread - Allow 7-10 Days
Dunlop FBL-M03 Left Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M3x0.5 Thread - Allow 7-10 Days
Regular price
$15.26
ex VAT
Regular price
Sale price
$15.26
ex VAT
Equivalent to: PHS3L
In stock
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- M3x0.5
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Material:
- Bronze Lined
Technical
Technical
| Bore size | 3mm |
|---|---|
| Thread | M3x0.5 |
| W | 6mm |
| H | 4.5mm |
| D | 12mm |
| L1 | 21mm |
| L2 | 10mm |
| O | 5.2mm |
| AF | 6.5mm |
| Static load | 3648 N |
